| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Differential Output | |
| Lead Spacing | |
| Lead Style | |
| Number of Bits | |
| Operating Temperature | |
| Output Type | |
| Reference Type | |
| SVHC Present | |
| Settling Time | |
| Storage Temperature | |
| Width |
The Analog Devices AD660BRZ is a 16-bit digital to analog converter (DAC) designed for data acquisition applications. It offers a buffered voltage output and utilizes an SPI interface for data transfer. The device supports both external and internal references and operates with analog supply voltages between ±13.5V and ±16.5V, and a digital supply voltage of 5V.
With an integral and differential linearity (INL/DNL) of ±2 LSB maximum, the AD660BRZ ensures accurate conversion. Its architecture is based on the R-2R resistor network. The settling time is specified at 13µs, making it suitable for applications requiring timely output changes.

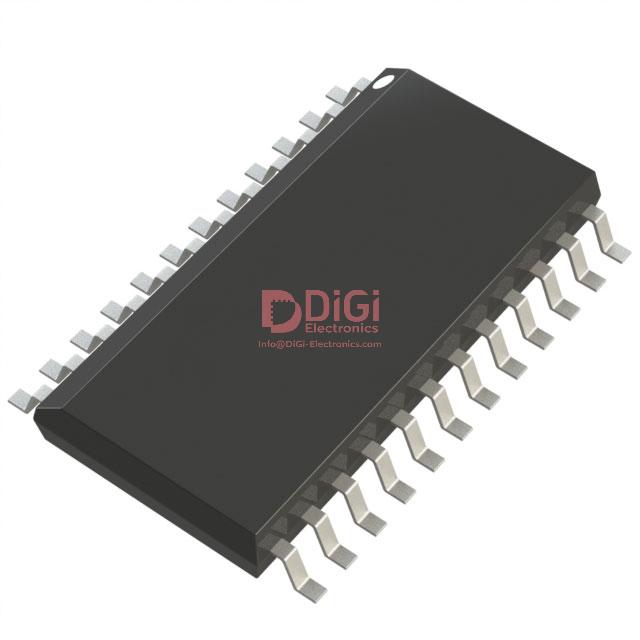

This DAC is housed in a 24-SOIC package, measuring 7.50mm in width. It is designed to operate in an extended temperature range from -40°C to 85°C, making it robust for various environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.38 | $6.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD660BRZ has 16-bit resolution.
The settling time is 13 µs.
The output type is Voltage - Buffered.
It uses an SPI interface.
The analog supply range is ±13.5V to 16.5V.
The operating temperature range is -40°C to 85°C.
It is available in a 24-SOIC package (0.295" width, 7.50mm).
