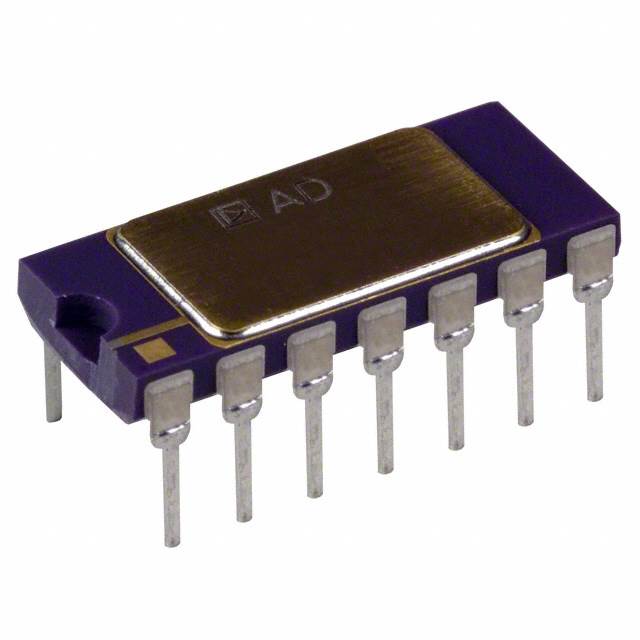

The Analog Devices AD632TD is a specialized analog multiplier/divider integrated circuit. It is housed in a 14-pin CDIP package suitable for through-hole mounting.
Key electrical specifications include a supply voltage of 15V, with an operating supply voltage up to 22V and a nominal negative supply voltage of -15V. The device consumes a typical operating supply current of 6mA and can handle a maximum input voltage of 12V. Its accuracy is rated at 0.5%, and it offers a bandwidth of 1MHz. The AD632TD is built using BIPOLAR technology.
This component is designed for military temperature grade applications, operating reliably within a temperature range of -55°C to 125°C. The package is a 14-CDIP with a 0.300-inch lead spacing, and it has 14 terminations. The product is in production status with a factory lead time of 10 weeks.
Environmental compliance includes RoHS3 compliance and Moisture Sensitivity Level 1 (Unlimited). The contact plating is Lead, Tin.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.87 | $1.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage is 15V.
The operating temperature range is -55°C to 125°C.
The accuracy is 0.5%.
The package type is 14-CDIP (0.300, 7.62mm) with through-hole mounting.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
