Mfr Part #:

AD632SH

Mfr Name: Analog Devices / Maxim Integrated

The AD632SH is an internally trimmed monolithic four-quadrant multiplier/divider from Analog Devices. It offers a maximum multiplying error of ±0.5% and a transfer function of [(X1-X2)(Y1-Y2)/10] + Z2.

✓ Total Stock: 5,000 pcs

AD632SH Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	5,000 pcs On Request	5000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

AD632SH Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Analog Multipliers, Dividers
Manufacturer Name	Analog Devices / Maxim Integrated
Function	Analog Multiplier/Divider
Mounting Type	Through Hole
Noise	90 µV rms
Number of Bits	4-Quadrant
Supplier Device Package	TO-100-10

View Similar Products (0)

AD632SH Description

Short technical summary and product information.

The AD632SH is an internally trimmed monolithic four-quadrant multiplier/divider manufactured by Analog Devices. It provides a transfer function of [(X1-X2)(Y1-Y2)/10] + Z2 with all inputs (X, Y, Z) differential and high impedance. The device is pretrimmed to a maximum 4-quadrant error of ±0.5% without external trims.

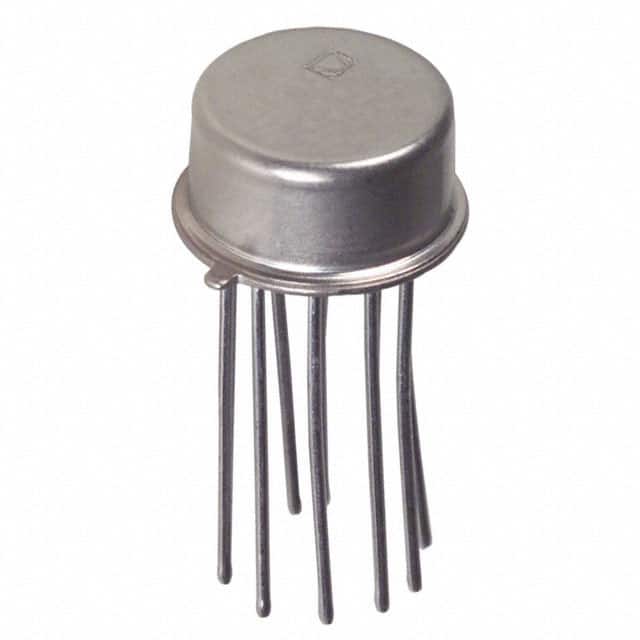

The scale factor is nominally 10 V and can be adjusted to provide up to ×10 gain. The noise specification is 90 µV rms over a 10 Hz to 10 kHz bandwidth, making it suitable for high-quality analog signal processing. The AD632SH is housed in a through-hole TO-100-10 metal can package, which provides robust mechanical and thermal performance.

Typical applications include high-quality analog signal processing, differential ratio and percentage computations, algebraic and trigonometric function synthesis, and voltage-controlled oscillators and filters. The device is pin-compatible with the industry-standard AD532 but offers improved specifications and a fully differential high-impedance Z input.

AD632SH Quick Information

Product Type: Analog Multiplier/Divider

Canonical Name: AD632SH Precision Analog Multiplier/Divider

Subcategory: 4-Quadrant Multiplier

AD632SH Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

AD632SH Features

Internally trimmed to ±0.5% maximum error.
All inputs differential and high impedance.
Scale-factor adjustable up to ×10 gain.
Low noise: 90 µV rms from 10 Hz to 10 kHz.
Through-hole TO-100-10 metal can package.

AD632SH Applications

High quality analog signal processing.
Differential ratio and percentage computations.
Algebraic and trigonometric function synthesis.
Voltage controlled oscillators and filters.

AD632SH FAQs

6 frequently asked questions generated from this part’s specifications.

What is the function of the AD632SH?

The AD632SH is an analog multiplier/divider with a transfer function of [(X1-X2)(Y1-Y2)/10] + Z2.

How many quadrants does the AD632SH support?

It is a 4-quadrant multiplier/divider.

What is the package type of the AD632SH?

The AD632SH is available in a TO-100-10 metal can package with through-hole mounting.

What is the noise performance of the AD632SH?

The noise is 90 µV rms over a 10 Hz to 10 kHz bandwidth.

Is the AD632SH RoHS compliant?

The AD632SH is listed as RoHS3 compliant, but this status is unverified and should be confirmed with the manufacturer.

What is the scale factor of the AD632SH?

The nominal scale factor is 10 V, adjustable up to ×10 gain.

AD632SH Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.

View All Alternate Parts

AD534JHZ

Analog Devices / Maxim Integrated

The AD534JHZ is a monolithic laser trimmed four-quadrant analog multiplier/divider from Analog Devices. It features a maximum multiplication error of ±0.25% and a pretrimmed 10 V scale factor.

View Part
