| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Amplifier Type | |
| Automotive Grade | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Slew Rate | |
| Storage Temperature | |
| Tape & Reel |

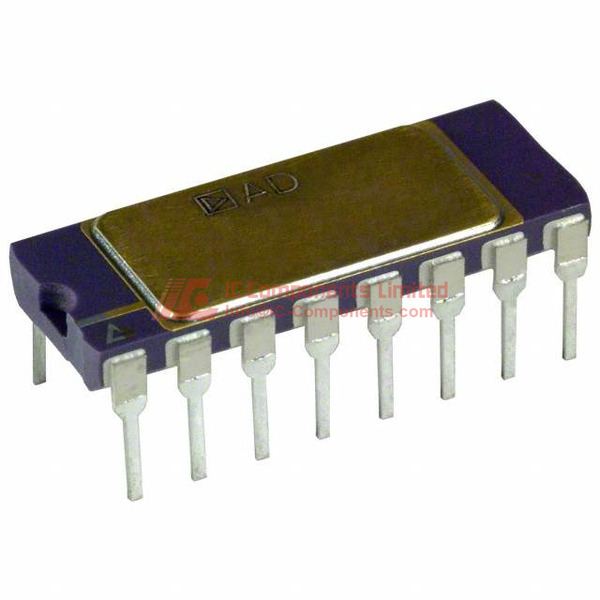

The AD625SD is an instrumentation amplifier manufactured by Analog Devices Inc. This component operates within a supply voltage span of 12V to 36V and features a low input offset voltage of 50 µV. It offers a gain bandwidth product of 25 MHz and a slew rate of 5 V/µs, making it suitable for various signal conditioning applications.
The amplifier has a current supply requirement of 3.5 mA and an input bias current of 30 nA. It is configured as a single circuit and designed for through-hole mounting in a 16-CDIP package. The operating temperature range is from -55°C to 125°C, ensuring reliability in demanding environments.
Key electrical characteristics include a -3dB bandwidth of 650 kHz. The device is packaged in a tube and is compliant with RoHS3 standards. Its robust design and specifications make it a reliable choice for instrumentation and precision measurement systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.13 | $2.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD625SD operates with a supply voltage span from 12 V to 36 V.
The input offset voltage for the AD625SD is 50 µV.
The gain bandwidth product of the AD625SD is 25 MHz.
The AD625SD can operate in temperatures ranging from -55°C to 125°C.
The AD625SD is supplied in a 16-CDIP package.
The AD625SD is designed for through-hole mounting.
