| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Slew Rate | |
| Supplier Device Package |

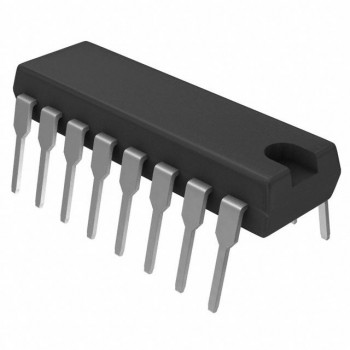

The AD625JNZ is an instrumentation amplifier manufactured by Analog Devices, Inc. This component is housed in a 16-DIP (0.300", 7.62mm) package and is designed for through-hole mounting. It operates within a supply voltage range of ±6V to ±18V and functions across an ambient temperature range of 0°C to 70°C.
Key electrical characteristics include a slew rate of 5V/µs, a gain bandwidth product of 25 MHz, and a -3db bandwidth of 650 kHz. The device exhibits a low input bias current of 30 nA and an input offset voltage of 50 µV. The supply current is rated at 3.5mA. This single-circuit amplifier is suitable for applications requiring precise signal amplification.
This instrumentation amplifier is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited usability under standard conditions. Its REACH status is unaffected. The AD625JNZ is a versatile component for electronic designs requiring robust amplification capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.13 | $2.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD625JNZ has a slew rate of 5 V/µs.
The gain bandwidth product of the AD625JNZ is 25 MHz.
The -3dB bandwidth of the AD625JNZ is 650 kHz.
The input bias current of the AD625JNZ is 30 nA.
The input offset voltage of the AD625JNZ is 50 µV.
The AD625JNZ operates within 0°C to 70°C.
It comes in a 16-DIP (0.300 inch, 7.62 mm) through-hole package.
