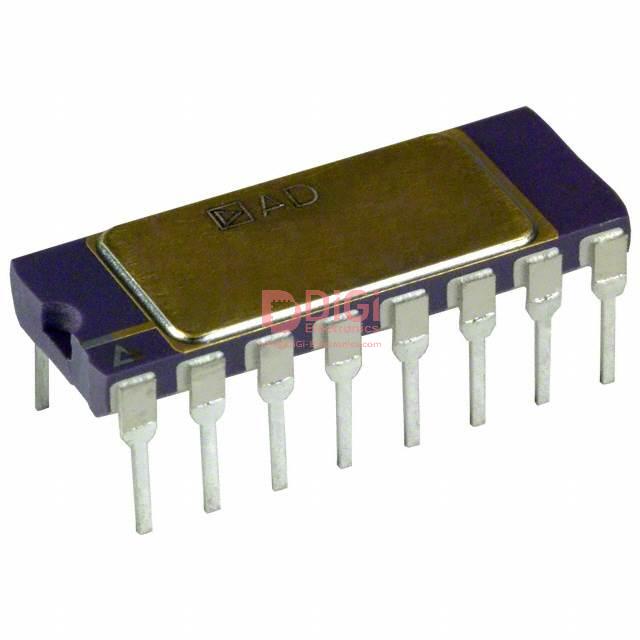

AD624CD The Analog Devices AD624CD is an instrumentation amplifier featuring a 25 MHz gain bandwidth product and a 5V/µs slew rate. It is designed for through-hole mounting.
Mfr Part #:

AD624CD

Available from 1 distributors
Mfr Name: AD
AD
The Analog Devices AD624CD is an instrumentation amplifier featuring a 25 MHz gain bandwidth product and a 5V/µs slew rate. It is designed for through-hole mounting.
✓ Total Stock: 8 pcs
$ Price Range: $1.87

AD624CD Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD624CD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Amplifier Type
Mounting Type
Number of Circuits
Operating Temperature
Slew Rate
View Similar Products (0)

AD624CD Description

Short technical summary and product information.

The AD624CD from Analog Devices is a versatile instrumentation amplifier designed for a wide range of applications. It offers a gain bandwidth product of 25 MHz and a slew rate of 5V/µs, ensuring efficient signal processing.



This amplifier operates with a supply voltage span from 12V to 36V and features a low input bias current of 15 nA and an input offset voltage of 25 µV. The AD624CD is housed in a 16-CDIP package and is intended for through-hole mounting.



Key electrical characteristics include a typical supply current of 3.5 mA. The operating temperature range is -25°C to 85°C, making it suitable for various environmental conditions. This component is part of the Instrumentation, Op Amps, Buffer Amps category.

AD624CD Quick Information

Product Type: Instrumentation Amplifier
Canonical Name: AD624CD Instrumentation Amplifier
Subcategory: Instrumentation, Op Amps, Buffer Amps

AD624CD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AD624CD Estimated Pricing

Qty Low High
1+ $1.87 $1.87

Estimated market price range - modelled values for guidance only, not live distributor offers.

AD624CD Features

  • Instrumentation amplifier with 25 MHz gain bandwidth.
  • Features a 5V/µs slew rate for signal processing.
  • Operates from 12V to 36V supply voltage.
  • Low input bias current of 15 nA.
  • Through-hole mounting in 16-CDIP package.

AD624CD Applications

  • Suitable for signal conditioning circuits.
  • Used in measurement and control systems.
  • Ideal for low-noise amplification needs.
  • Applications requiring stable voltage references.

AD624CD FAQs

6 frequently asked questions generated from this part’s specifications.
What is the gain bandwidth product of the AD624CD?

The gain bandwidth product is 25 MHz.

What is the slew rate of the AD624CD instrumentation amplifier?

The slew rate is 5V/µs.

What is the operating voltage range for the AD624CD?

The operating voltage span is from 12V to 36V.

What is the operating temperature range for the AD624CD?

The operating temperature range is -25°C to 85°C.

How is the AD624CD mounted?

The AD624CD is designed for through-hole mounting.

What is the package type for the AD624CD?

The package type is 16-CDIP.
