| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output Type | |
| Supply Voltage |

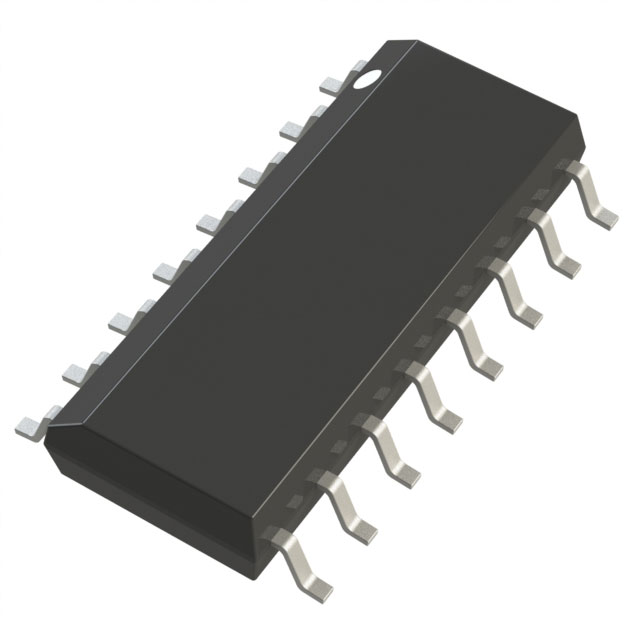

The Analog Devices Inc. AD606JRZ is a single-circuit logarithmic amplifier housed in a 16-SOIC package. It is designed for surface mounting and operates within a supply voltage range of 4.5V to 5.5V.
Key electrical characteristics include a supply current of 13mA and an output current per channel of 1.2mA. The device also features an input bias current of 4µA. The operating temperature range for this component is from 0°C to 70°C.
This logarithmic amplifier is suitable for applications requiring precise signal level detection and measurement. Its differential output and logarithmic response make it a versatile component for signal processing tasks.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 4.5V to 5.5V.
It comes in a 16-SOIC (0.154", 3.90mm Width) surface mount package.
The operating temperature range is 0°C to 70°C.
The typical supply current is 13mA.
It is a logarithmic amplifier with differential output.
The input bias current is 4µA.
It contains one circuit.
