| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,900 pcs
|
1900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Linearity | |
| Mounting Type | |
| Operating Temperature | |
| Output Current (Nominal @ 1 K) | |
| Output Current (Nominal @ 25 °C) | |
| Output Type | |
| Sensing Temperature | |
| Sensor Type | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Test Condition | |
| Voltage | |
| accuracy (Nominal @ AD 590 M) |

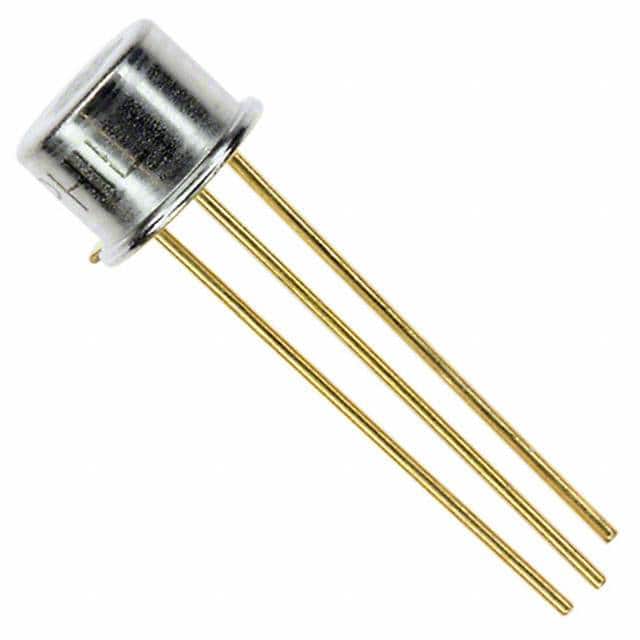

The Analog Devices AD590KH is a versatile 2-terminal integrated circuit temperature transducer that outputs a current proportional to absolute temperature. It functions as a high-impedance, constant current regulator, providing 1 μA/K for supply voltages between 4V and 30V. The device is laser trimmed for accuracy, offering ±2.5°C accuracy at 25°C and excellent linearity over its full operating range of -55°C to 150°C.
Designed for ease of use, the AD590KH eliminates the need for linearization circuitry, precision voltage amplifiers, or resistance measuring circuits. Its high-impedance current output makes it ideal for remote sensing applications, as it is insensitive to voltage drops over long lines. The sensor is available in a TO-52-3 metal can package and is designed for through-hole mounting.
Applications for the AD590KH include general temperature measurement, temperature compensation or correction of discrete components, biasing proportional to absolute temperature, flow rate measurement, and fluid level detection. Its monolithic integrated circuit design and elimination of support circuitry make it an attractive and cost-effective alternative for many temperature measurement situations.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD590KH operates from -55°C to 150°C.
The AD590KH operates with a supply voltage range of 4V to 30V.
The AD590KH provides an analog current output.
The AD590KH has an accuracy of ±2.5°C.
The AD590KH is available in a TO-52-3 Metal Can package.
The AD590KH is designed for through-hole mounting.
