The AD589SH is a fixed shunt voltage reference IC manufactured by Analog Devices Inc. It delivers a precise output voltage of 1.235V with a tolerance range of -2.83% to +1.22%. This device is designed for high stability and low output noise, featuring a noise level of 5µVrms over the 10Hz to 10kHz bandwidth.
The AD589SH operates within a wide temperature range of -55°C to 125°C, making it suitable for harsh environmental conditions. It has a low temperature coefficient of 100ppm/°C, ensuring minimal drift across its operating temperature range. The device can handle an output current of up to 5 mA and requires a minimum cathode current of 50 µA.

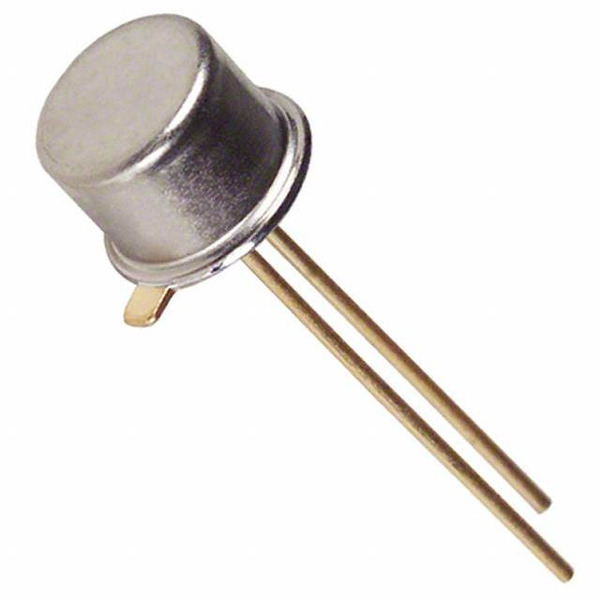

Packaged in a TO-51-2 metal can, the AD589SH is designed for through-hole mounting. Its shunt reference configuration allows it to maintain a stable reference voltage regardless of load variations within its rated current range. This makes it ideal for precision analog circuits, data converters, and stable power supply designs.
This component is RoHS3 compliant and unaffected by REACH regulations. It is suitable for applications requiring a reliable and accurate voltage reference in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD589SH provides a fixed output voltage of 1.235V.
The AD589SH operates from -55°C to 125°C.
The tolerance for the AD589SH is -2.83% to +1.22%.
The temperature coefficient is 100ppm/°C.
The noise level is 5µVrms between 10Hz and 10kHz.
The AD589SH is available in a TO-51-2 metal can package.
