| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,059 pcs
|
2059 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | 9440 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Grade | |
| Mounting Type | |
| Noise | |
| Operating Temperature | |
| Output Type | |
| Reference Type | |
| SVHC Present | |
| Temperature Coefficient |

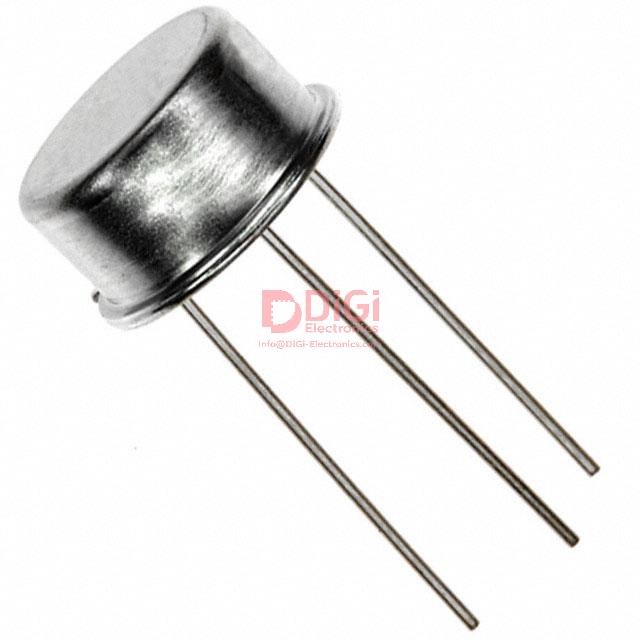

The Analog Devices AD581SH/883B is a military-grade voltage reference IC designed for precision applications. It provides a fixed 10V output with a maximum output current of 10 mA. The device exhibits a low temperature coefficient of 30ppm/°C, ensuring stable performance across a wide operating temperature range of -55°C to 125°C.
This voltage reference IC operates with an input voltage range of 12V to 30V and consumes a supply current of 1 mA. It is housed in a TO-5-3 package, suitable for through-hole mounting.
The AD581SH/883B is qualified to MIL-STD-883 standards, making it suitable for demanding environments. Its fixed output and tight temperature stability make it a reliable choice for various analog circuit designs requiring a precise voltage reference.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is fixed at 10V.
The input voltage range is 12V to 30V.
The operating temperature range is -55°C to 125°C.
It is available in a TO-5-3 through-hole package.
The typical output current is 10 mA.
The temperature coefficient is 30 ppm/°C.
It is qualified to MIL-STD-883.
