AD5766BCBZ The AD5766BCBZ from Analog Devices Inc. is a 16-bit Digital-to-Analog Converter (DAC) with a voltage output. It operates within a supply voltage range of 2.97V to 16V.
Mfr Part #:

AD5766BCBZ

Available from 1 distributors
Mfr Name: ADI Electronics
ADI Electronics
The AD5766BCBZ from Analog Devices Inc. is a 16-bit Digital-to-Analog Converter (DAC) with a voltage output. It operates within a supply voltage range of 2.97V to 16V.
✓ Total Stock: 6,943 pcs
$ Price Range: $8.70

AD5766BCBZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
6,943 pcs
On Request
6943 pcs On Request 1 On Request On Request 17+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD5766BCBZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Data Interface
Differential Output
Mounting Type
Number of Bits
Operating Temperature
Output Type
Reference Type
Settling Time
View Similar Products (0)

AD5766BCBZ Description

Short technical summary and product information.

The AD5766BCBZ is a 16-bit Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. This component features a voltage output and supports an analog supply voltage ranging from 2.97V to 16V. It is designed for operation within a temperature range of -40°C to 105°C.

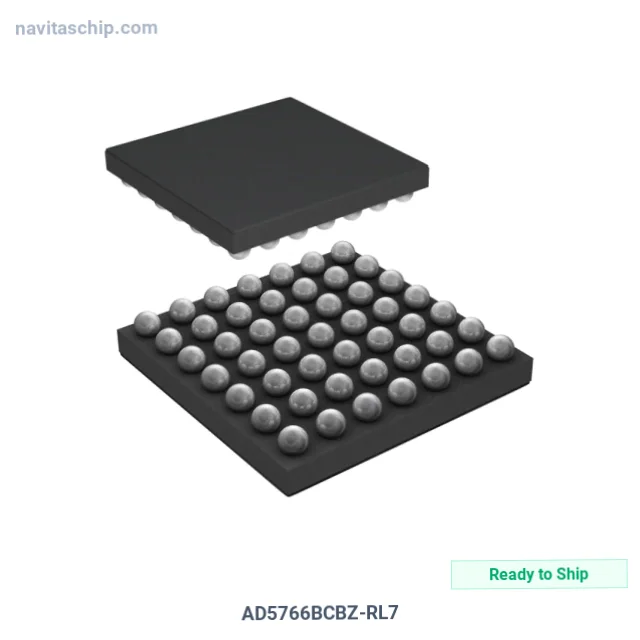

The DAC utilizes an external reference and supports SPI and DSP data interfaces. It has a settling time of 12µs to 0.1 LSB and offers 16 channels. The device is housed in a compact 49-WLCSP (3.45x3.45) package and is designed for surface mount applications.



Key specifications include an integral nonlinearity (INL) and differential nonlinearity (DNL) of ±16 and ±1 LSB, respectively. The architecture is classified as DAC. The component is packaged in Tape & Reel (TR) format.

AD5766BCBZ Quick Information

Product Type: Digital-to-Analog Converter (DAC)
Canonical Name: Analog Devices Inc. AD5766BCBZ 16-Bit Digital-to-Analog Converter
Subcategory: DAC

AD5766BCBZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AD5766BCBZ Estimated Pricing

Qty Low High
1+ $8.70 $8.70

Estimated market price range - modelled values for guidance only, not live distributor offers.

AD5766BCBZ Features

  • 16-bit resolution for precise conversion.
  • 16-channel DAC for multi-output applications.
  • Operates from 2.97V to 16V analog supply.
  • Wide temperature range of -40°C to 105°C.
  • Surface mount 49-WLCSP package.

AD5766BCBZ Applications

  • Suitable for data acquisition systems.
  • Used in signal processing applications.
  • Ideal for control systems requiring analog output.
  • Applicable in test and measurement equipment.

AD5766BCBZ FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resolution of the AD5766BCBZ?

The AD5766BCBZ has a resolution of 16-Bit.

How many DAC channels does the AD5766BCBZ have?

The AD5766BCBZ features 16 DAC channels.

What is the settling time for the AD5766BCBZ?

The settling time for the AD5766BCBZ is 12µs.

What is the operating voltage range for the AD5766BCBZ?

The analog supply voltage for the AD5766BCBZ ranges from 2.97V to 16V.

What is the operating temperature range of the AD5766BCBZ?

The AD5766BCBZ operates within a temperature range of -40°C to 105°C.

What package type is the AD5766BCBZ supplied in?

The AD5766BCBZ is supplied in a 49-WLCSP (3.45x3.45) package.
