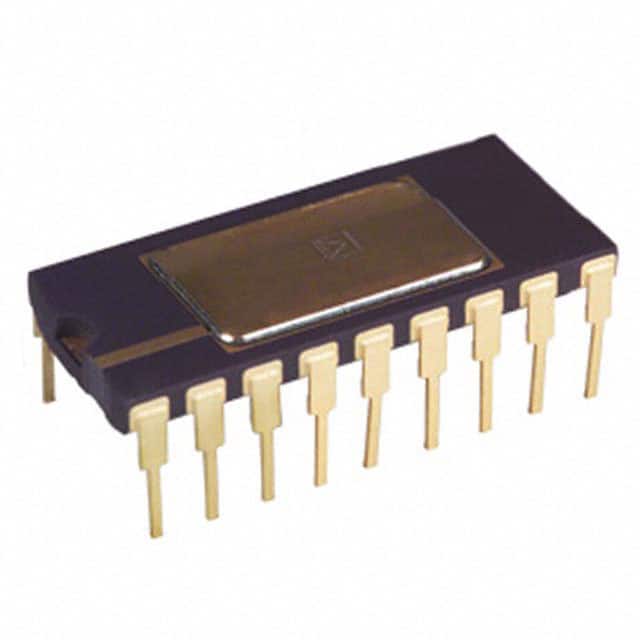

The AD571SD/883B is a 10-bit successive approximation register (SAR) analog-to-digital converter manufactured by Analog Devices. It provides a unipolar input range of 0 V to +10 V and a bipolar input range of -5 V to +5 V, with positive true binary and positive true offset binary output coding respectively. The device offers a conversion time of 15/25/40 µs over the full operating temperature range.
The ADC operates from a +5 V positive supply (4.5 V to 7.0 V) and a -15 V negative supply (-12.0 V to -16.5 V), drawing 7 mA on V+ and 9/15 mA on V-. The analog input impedance is typically 5 kΩ. This through-hole device is housed in a Ceramic DIP (D-18) package and is rated for the military temperature range of -55°C to +125°C.
With its internal reference and parallel interface, the AD571SD/883B is suited for data acquisition systems requiring moderate speed and high resolution. The 883B designation indicates a military-grade screened version, appropriate for harsh environment applications.
The AD571SD/883B has a resolution of 10 bits.
The unipolar input range is 0 V to +10 V, and the bipolar input range is -5 V to +5 V.
The conversion time is 15 µs (min), 25 µs (typ), and 40 µs (max) over the operating temperature range.
The device requires a positive supply of +4.5 V to +7.0 V (nominal +5 V) and a negative supply of -12.0 V to -16.5 V (nominal -15 V).
The operating temperature range is -55°C to +125°C.
It is available in a Ceramic DIP (D-18) through-hole package.
The part is listed as RoHS3 Compliant, but this is unverified and should be confirmed with the manufacturer.
