The AD5668BCBZ-1-RL7 is a 16-bit octal digital-to-analog converter (DAC) from Analog Devices. It features 8 channels with buffered voltage outputs, providing rail-to-rail operation. The device uses a string DAC architecture for monotonic performance. It is designed for low power consumption and includes a power-down mode that reduces current to 400 nA at 5 V.
The DAC operates from a 2.7 V to 5.5 V supply voltage and supports both SPI and DSP data interfaces. The settling time is 7 µs typical. Integral nonlinearity (INL) is ±8 LSB typical and ±1 LSB maximum. The device includes an on-chip 1.25 V/2.5 V reference with 5 ppm/°C drift, and also supports an external reference.
Typical applications include process control, data acquisition, portable instruments, and programmable voltage/current sources. The CLR function allows setting the output to a programmable code, and the LDAC function provides simultaneous update of all DAC outputs. The AD5668BCBZ-1-RL7 is available in a 16-ball WLCSP package measuring 2.61x2.61 mm, suitable for space-constrained applications. It is specified for operation over the industrial temperature range of -40°C to 105°C.
The supply voltage range is 2.7V to 5.5V.

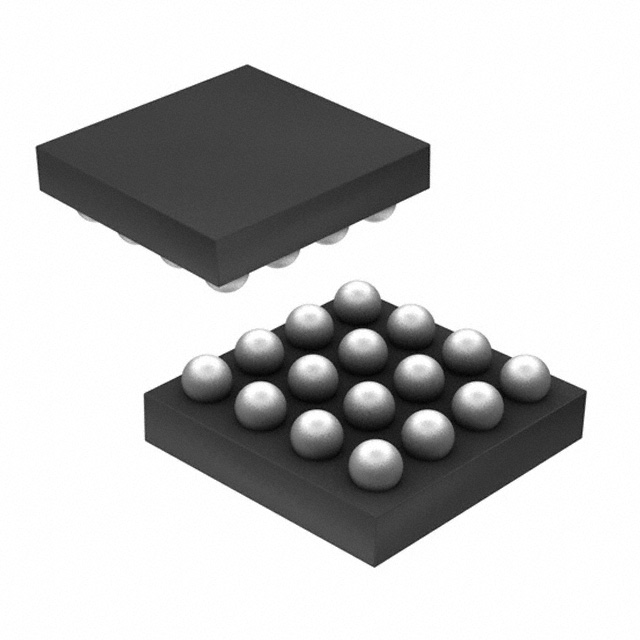

It is available in a 16-WLCSP (2.61x2.61mm) and 16-UFBGA, WLCSP package.
The operating temperature range is -40°C to 105°C.
The RoHS status is RoHS3 Compliant, but this is unverified.
The resolution is 16 bits.
It has 8 DAC channels.
The settling time is 7 µs typical.
