| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature Range | |
| Output Type | |
| Reference Type | |
| Resolution | |
| Settling Time |
The AD5660ARJZ-2500RL7 is a 16-bit digital-to-analog converter (DAC) manufactured by Analog Devices Inc. This single-channel device offers a buffered voltage output and utilizes an SPI/DSP interface for data communication. It operates with both analog and digital supply voltages of 5V and features an internal reference.
Key specifications include a resolution of 16 bits, a settling time of 10µs, and integral nonlinearity (INL) of ±16 LSB (max) with differential nonlinearity (DNL) of ±1 LSB (max). The device is designed for precision analog signal conversion and is suitable for space-constrained applications.

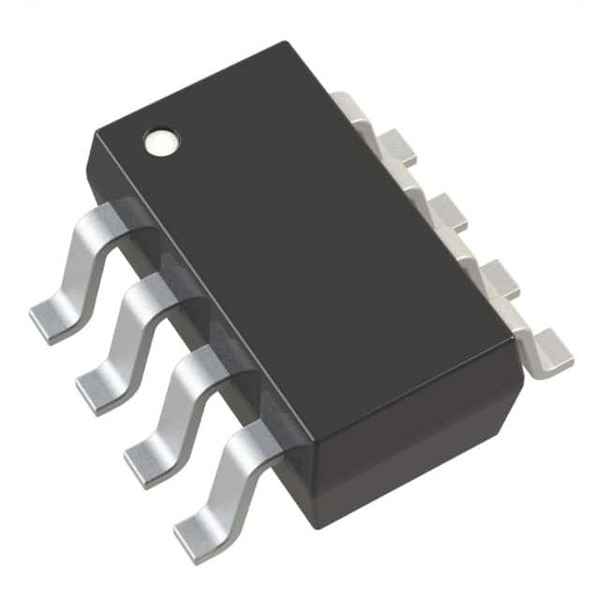

The AD5660ARJZ-2500RL7 is housed in a compact SOT-23-8 package and supports surface mounting. It operates within a temperature range of -40°C to 105°C. The architecture is a String DAC. This component is supplied in tape and reel packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD5660ARJZ-2500RL7 has a resolution of 16 bits.
The AD5660ARJZ-2500RL7 provides a buffered voltage output.
The AD5660ARJZ-2500RL7 uses an SPI and DSP compatible data interface.
The AD5660ARJZ-2500RL7 requires 5V for both analog and digital supply voltages.
The operating temperature range for the AD5660ARJZ-2500RL7 is -40°C to 105°C.
The AD5660ARJZ-2500RL7 is supplied in a SOT-23-8 package.
