The AD565AKD is a 12-bit digital-to-analog converter (DAC) manufactured by Analog Devices. It delivers a current output in an unbuffered configuration and is designed for high-speed precision conversion applications. The device uses an R-2R resistor ladder architecture and supports both internal and external reference sources.
Key electrical specifications include a parallel data interface and a settling time of 250 ns maximum as stated in the AD565A datasheet. The DAC operates from a supply voltage range of ±11.4V to 16.5V and has an integral non-linearity of ±0.25 LSB. Power dissipation is 225 mW maximum. The device is specified for an operating temperature range of 0°C to 70°C.

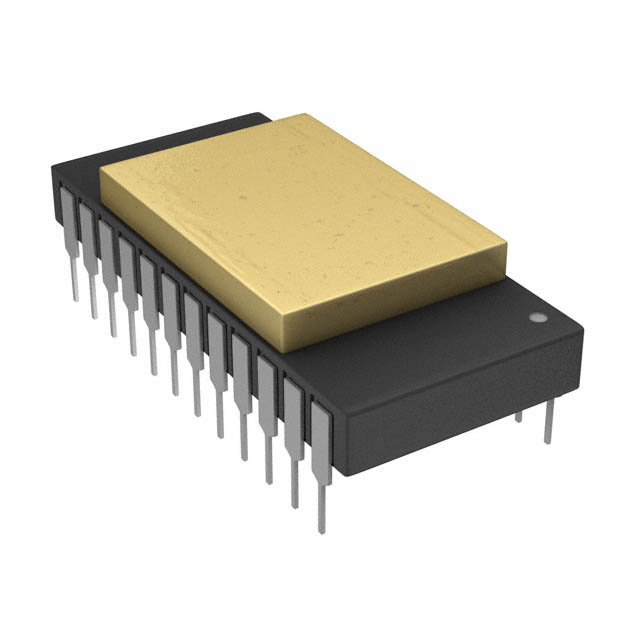

The AD565AKD is available in a 24-pin ceramic dual in-line package (24-CDIP) with 0.600-inch body width and 15.24mm lead spacing. It is intended for through-hole mounting, making it suitable for breadboards, prototype systems, and legacy PCB layouts. The parallel interface allows direct connection to microcontrollers and digital signal processors.
This combination of 12-bit resolution, high-speed settling, and flexible reference support makes the AD565AKD suitable for data acquisition output stages, industrial control loops, and instrumentation systems. The device is part of the AD565A family of monolithic DACs.
The AD565AKD is a 12-bit digital-to-analog converter.
The AD565A datasheet specifies a maximum settling time of 250 ns.
The device operates from 0°C to 70°C.
The supply voltage range is ±11.4V to 16.5V.
The AD565AKD is available in a 24-CDIP (0.600", 15.24mm) through-hole package.
The part is listed as RoHS3 compliant, but this status is unverified and should be confirmed.
It uses a parallel data interface.
