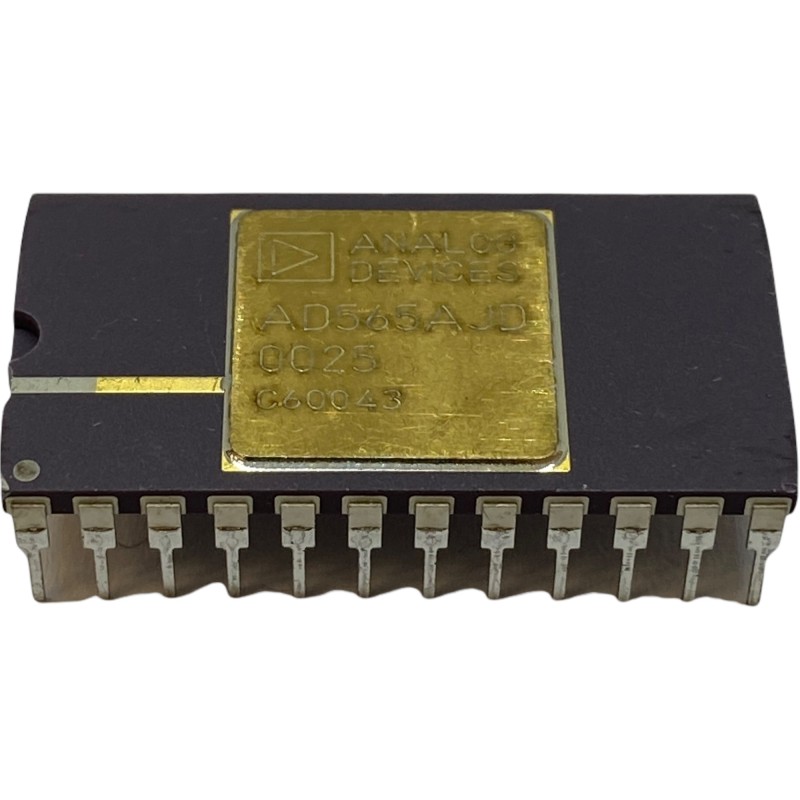

The AD565AJD is a high-speed 12-bit monolithic digital-to-analog converter (DAC) manufactured by Analog Devices. It is designed for applications requiring fast and accurate analog output.
Key electrical specifications include a very high-speed settling time of 250 ns to 1/2 LSB and a full-scale switching time of 30 ns. The AD565AJD consumes a maximum of 225 mW of power. Linearity is guaranteed over temperature to 1/2 LSB maximum for K and T grades, and monotonicity is also guaranteed over temperature.
This DAC utilizes precision, high-speed bipolar current-steering switches and a laser-trimmed thin-film resistor network. The AD565A series includes an on-board buried Zener reference, offering low noise and long-term stability. The device is suitable for use with ±12V supplies.
Packaged in ceramic, the AD565AJD is designed for surface mount applications. Its combination of speed, accuracy, and integrated reference makes it ideal for high-speed display drivers and fast analog-to-digital converters.
