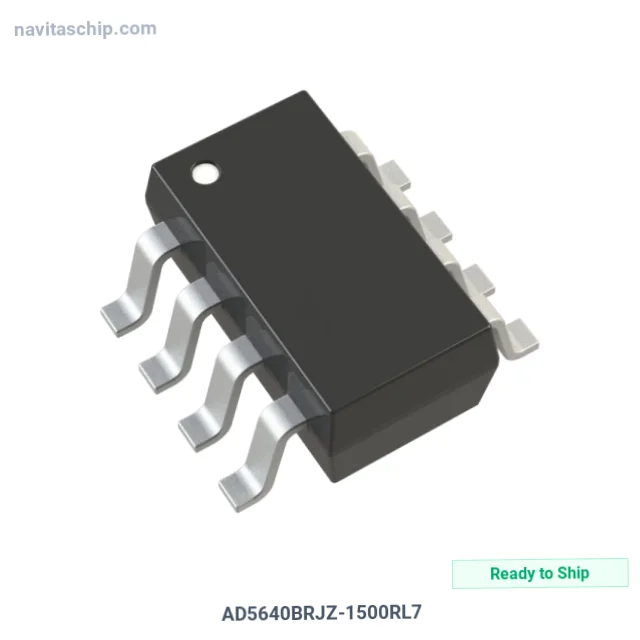

AD5640BRJZ The AD5640BRJZ from Analog Devices Inc. is a 14-bit Digital-to-Analog Converter (DAC) with a voltage-buffered output. It operates within a 2.7V to 3.3V supply range and is housed in a compact SOT-23-8 package.
Mfr Part #:

AD5640BRJZ

Available from 1 distributors
Mfr Name: ADI Electronics
ADI Electronics
The AD5640BRJZ from Analog Devices Inc. is a 14-bit Digital-to-Analog Converter (DAC) with a voltage-buffered output. It operates within a 2.7V to 3.3V supply range and is housed in a compact SOT-23-8 package.
✓ Total Stock: 4,081 pcs
$ Price Range: $3.86

AD5640BRJZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,081 pcs
On Request
4081 pcs On Request 1 On Request On Request 18+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD5640BRJZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Data Interface
Differential Output
Mounting Type
Number of Bits
Operating Temperature
Output Type
Reference Type
Settling Time
Storage Temperature
Tape & Reel
View Similar Products (0)

AD5640BRJZ Description

Short technical summary and product information.

The AD5640BRJZ is a 14-bit Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. This component features a voltage-buffered output and supports data interfaces including SPI and DSP. It operates with analog and digital supply voltages ranging from 2.7V to 3.3V.



Key electrical specifications include a settling time of 10µs and integral/differential non-linearity within ±4 LSB (max) and ±0.5 LSB (max), respectively. The device is designed for operation across a temperature range of -40°C to 105°C.



Packaged in an 8-pin SOT-23-8 surface-mount configuration, the AD5640BRJZ is suitable for applications requiring precise digital-to-analog conversion in space-constrained designs. It is supplied on tape and reel.



Environmental compliance includes RoHS compliance, REACH unaffected status, and a Moisture Sensitivity Level (MSL) of 1.

AD5640BRJZ Quick Information

Product Type: Digital-to-Analog Converter (DAC)
Canonical Name: AD5640BRJZ 14-Bit Digital-to-Analog Converter (DAC)
Subcategory: Special Purpose

AD5640BRJZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AD5640BRJZ Estimated Pricing

Qty Low High
1+ $3.86 $3.86

Estimated market price range - modelled values for guidance only, not live distributor offers.

AD5640BRJZ Features

  • 14-bit resolution Digital-to-Analog Converter
  • Voltage - Buffered output type
  • SPI and DSP data interface
  • Internal voltage reference
  • SOT-23-8 surface mount package

AD5640BRJZ Applications

  • Suitable for precision data conversion
  • Ideal for space-constrained designs
  • Used in systems requiring digital control
  • Applications with 2.7V to 3.3V supply

AD5640BRJZ FAQs

4 frequently asked questions generated from this part’s specifications.
What is the resolution of the AD5640BRJZ?

The AD5640BRJZ has a resolution of 14 bits.

What type of output does the AD5640BRJZ provide?

The AD5640BRJZ provides a Voltage - Buffered output.

What is the operating temperature range for the AD5640BRJZ?

The operating temperature range for the AD5640BRJZ is -40°C to 105°C.

What package is the AD5640BRJZ supplied in?

The AD5640BRJZ is supplied in a SOT-23-8 package.
