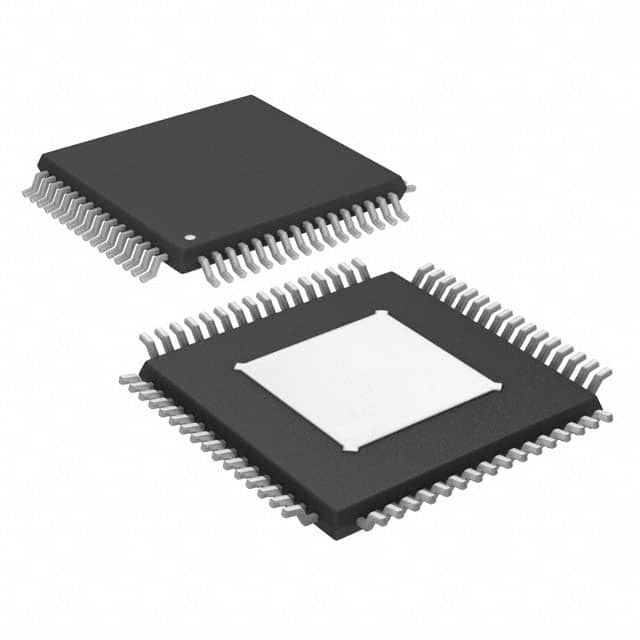

The AD5560JSVUZ-REEL is a highly integrated device power supply (DPS) from Analog Devices, designed for applications like automatic test equipment (ATE).
This component features 16-bit DACs for programmable levels and includes five internal current ranges (±5 µA to ±25 mA) and two external ranges (EXTFORCE1: ±1.2 A, EXTFORCE2: ±500 mA). It supports a 25V force voltage span with asymmetrical operation within -22V/+25V. The device also offers a programmable slew rate from 1 V/μs to 0.3 V/μs and interfaces compatible with SPI, MICROWIRE, and DSP standards.
It is housed in a 64-lead TQFP package with an exposed pad, suitable for surface mounting. The AD5560 includes features like programmable Kelvin clamp and alarm, offset and gain correction registers, and on-chip comparators. Open-drain alarm flags are provided for overcurrent, overtemperature, or Kelvin alarm conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD5560 features five internal current ranges: ±5 µA, ±25 µA, ±250 µA, ±2.5 mA, and ±25 mA.
The AD5560 supports two external current ranges: EXTFORCE1 up to ±1.2 A maximum and EXTFORCE2 up to ±500 mA maximum.
The AD5560 has a 25 V force voltage span with asymmetrical operation within -22 V/+25 V.
The programmable slew rate feature ranges from 1 V/μs to 0.3 V/μs.
The AD5560 is compatible with SPI, MICROWIRE, and DSP interface standards.
The AD5560 features 16-bit DACs.
The AD5560 is available in a 64-lead TQFP package with an exposed pad.
