The AD5560JSVUZ is a highly integrated device power supply (DPS) from Analog Devices, designed for applications requiring precise and programmable voltage and current outputs. This specialized IC features multiple internal and external current ranges, including up to ±1.2 A maximum via EXTFORCE1 and ±500 mA via EXTFORCE2. It incorporates 16-bit DACs for setting programmable levels, along with features like programmable Kelvin clamp and alarm functions.
The device supports a 25 V FV span with asymmetrical operation within −22 V/+25 V. It includes offset and gain correction registers on-chip for improved accuracy. The AD5560JSVUZ is controlled via a SPI-/MICROWIRE-/DSP-compatible interface operating at clock speeds up to 50 MHz.

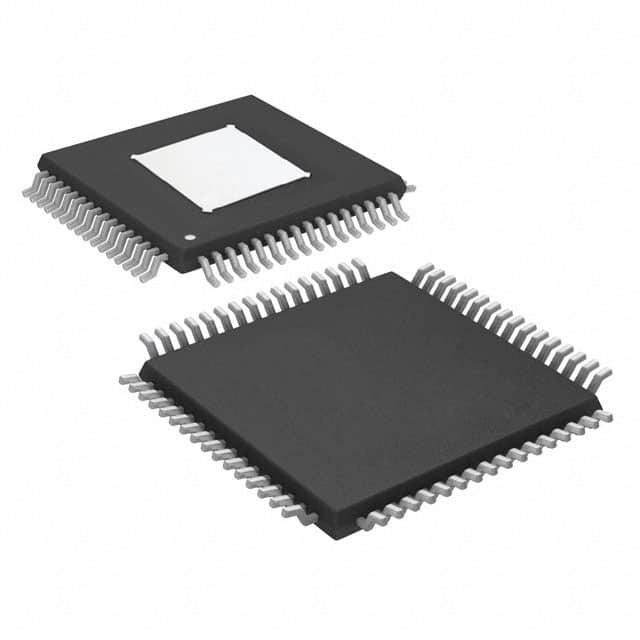

Packaged in a 64-lead TQFP with an exposed pad (10 mm × 10 mm), the AD5560JSVUZ is designed for surface mounting. Its capabilities make it suitable for automatic test equipment (ATE) and other device power supply applications where precise control and multiple current/voltage capabilities are essential.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD5560JSVUZ offers 5 internal current ranges (±5 µA, ±25 µA, ±250 µA, ±2.5 mA, ±25 mA) and 2 external ranges: EXTFORCE1 up to ±1.2 A maximum and EXTFORCE2 up to ±500 mA maximum.
The AD5560JSVUZ has a 25 V FV span with asymmetrical operation within −22 V/+25 V.
The AD5560JSVUZ features 16-bit DACs for programmable levels.
The AD5560JSVUZ is compatible with SPI, QSPI™, MICROWIRE™, and DSP interfaces, operating at clock speeds up to 50 MHz.
The AD5560JSVUZ is supplied in a 64-lead TQFP with an exposed pad (10 mm × 10 mm).
The AD5560JSVUZ is designed for applications such as automatic test equipment (ATE) and general device power supply.
