| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,022 pcs
|
2022 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Interface | |
| Mounting Type | |
| Supplier Device Package | |
| Supplier Package | |
| Type |
The AD5560JBCZ from Analog Devices is a high-performance, integrated device power supply (DPS) designed for applications like automatic test equipment (ATE).
This IC features programmable force voltages and measure ranges, with five internal current ranges from ±5 µA to ±25 mA and two external ranges up to ±1.2 A (EXTFORCE1) and ±500 mA (EXTFORCE2). It includes integrated 16-bit DACs for level setting, offset and gain correction, and a programmable slew rate feature.
The AD5560JBCZ supports a 25 V force voltage span with asymmetrical operation within -22 V/+25 V. It also incorporates on-chip comparators, Kelvin clamp and alarm functions, and a die temperature sensor with shutdown. The device communicates via a SPI-/MICROWIRE-/DSP-compatible interface.

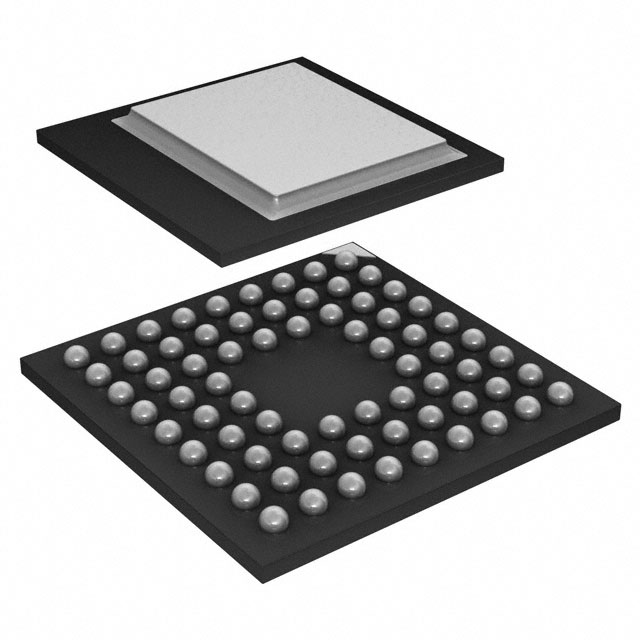

Packaged in a 72-ball (8 mm × 8 mm) flip-chip BGA, the AD5560JBCZ is designed for surface mounting. It provides open-drain alarm flags for temperature, current clamp, and Kelvin alarms, enhancing system diagnostics and protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD5560JBCZ has 16-Bit resolution.
The five internal current ranges are ±5 µA, ±25 µA, ±250 µA, ±2.5 mA, and ±25 mA.
The maximum external current range is ±1.2 A on EXTFORCE1.
The force voltage span is 25 V with asymmetrical operation within -22 V to +25 V.
The AD5560JBCZ uses an SPI-/MICROWIRE-/DSP-compatible interface.
The AD5560JBCZ is available in a 72-TFBGA or 72-CSPBGA (8x8) package.
The AD5560JBCZ is designed for surface mount assembly.
