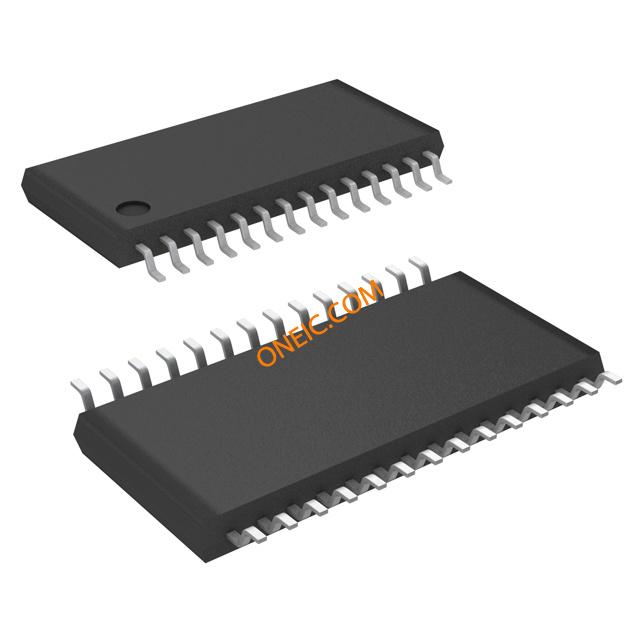

The AD5546BRUZ is a 16-bit Digital to Analog Converter (DAC) manufactured by Analog Devices. It operates with a single supply voltage and features a parallel interface for data input. This general-purpose DAC boasts a maximum data rate of 2 Msps and an output current of 10µA. The device architecture is based on R-2R and current steering principles.
Designed for surface mount applications, the AD5546BRUZ comes in a 28-Pin TSSOP package with gull-wing leads. Its operating temperature range is -40°C to 125°C. Key electrical specifications include a linearity of ±2 LSB and a settling time of 0.5 µs (typical). The maximum power dissipation is rated at 55 µW.
This component is suitable for various general-purpose digital-to-analog conversion tasks where precision and speed are required. Its single supply operation and compact TSSOP packaging make it a versatile choice for embedded systems and other electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.38 | $6.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD5546BRUZ has a resolution of 16 bits.
The maximum sampling rate is 2 Msps.
The supply voltage is 5.5 V, single supply.
The AD5546BRUZ is available in a 28-TSSOP surface-mount package.
The operating temperature range is -40°C to 125°C.
The output type is current, with a full-scale output current of 10 µA.
The typical settling time is 0.5 µs.
