AD5535ABC AD5535ABC is a 32-channel, 14-bit digital-to-analog converter from Analog Devices. It features a programmable full-scale output voltage from 50V to 200V and a serial SPI interface.
Mfr Part #:

AD5535ABC

Available from 2 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
AD5535ABC is a 32-channel, 14-bit digital-to-analog converter from Analog Devices. It features a programmable full-scale output voltage from 50V to 200V and a serial SPI interface.
✓ Total Stock: 4,800 pcs

AD5535ABC Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,600 pcs
On Request
3600 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
1,200 pcs
On Request
1200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD5535ABC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Number of Channels
Operating Temperature Range
Output Type
Reference Type
Resolution
Settling Time
Supplier Device Package
View Similar Products (0)

AD5535ABC Description

Short technical summary and product information.

The AD5535ABC is a high-integration 32-channel, 14-bit DAC with an on-chip high voltage output amplifier, designed for optical MEMS systems. It offers a programmable output voltage range via the REF_IN pin, achieving 0V to 50V with REF_IN=1V and 0V to 200V with REF_IN=4V.



Each channel can source 700 µA, making it ideal for driving MEMS mirrors. The device uses a 3-wire serial interface with clock rates up to 30 MHz and supports a 1.2 MHz channel update rate. It is guaranteed monotonic with typical settling time of 10 µs.

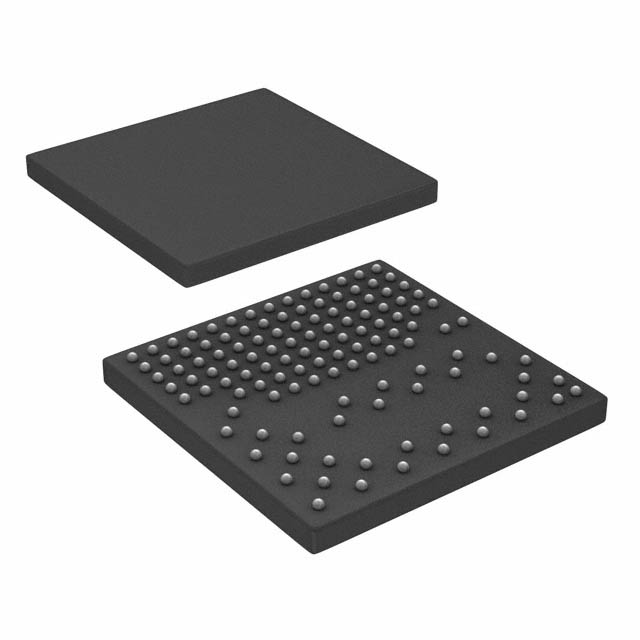

The AD5535ABC is housed in a 124-CSPBGA (15x15) package and operates over -10°C to +85°C. It requires multiple supply voltages: analog 4.75V to 5.25V, digital 2.7V to 5.25V, and high voltage positive supply of 210V. The device is RoHS3 compliant.

AD5535ABC Quick Information

Product Type: Digital to Analog Converter (DAC)
Canonical Name: 32-Channel, 14-Bit DAC with Full-Scale Output Voltage Programmable from 50 V to 200 V
Subcategory: Data Acquisition DAC

AD5535ABC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AD5535ABC Features

  • 32-channel, 14-bit DAC resolution.
  • Programmable output voltage up to 200V.
  • 700 µA output current per channel.
  • Serial SPI interface with 30 MHz clock.
  • Guaranteed monotonic and 10 µs settling time.

AD5535ABC Applications

  • Optical MEMS mirror deflection and control
  • Optical crosspoint switch applications
  • Micropositioning with piezoelectric actuators
  • Level setting in automotive systems

AD5535ABC FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resolution of the AD5535ABC?

14-bit.

How many DAC channels does the AD5535ABC have?

32 channels.

What is the output voltage range of the AD5535ABC?

Programmable from 0V to 50V with REF_IN=1V or 0V to 200V with REF_IN=4V.

What is the settling time of the AD5535ABC?

10 µs typical.

What serial interface does the AD5535ABC use?

3-wire SPI-compatible serial interface.

What is the operating temperature range?

-10°C to +85°C.

Is the AD5535ABC RoHS compliant?

Yes, RoHS3 compliant (unverified).
