| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,070 pcs
|
2070 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
58 pcs
|
58 pcs | On Request | 1 | On Request | On Request | 227 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Resolution | |
| Supplier Device Package | |
| Supplier Package |
The AD5532BBC-1 from Analog Devices is a highly integrated 32-channel, 14-bit Digital to Analog Converter (DAC) with a precision infinite sample-and-hold mode. This device is designed for applications requiring high channel density and accurate voltage output.
Key electrical specifications include a 14-bit resolution and guaranteed monotonicity. The DAC offers an output voltage span of 10V and an output impedance of 0.5 kΩ. It operates within a temperature range of -40°C to +85°C.

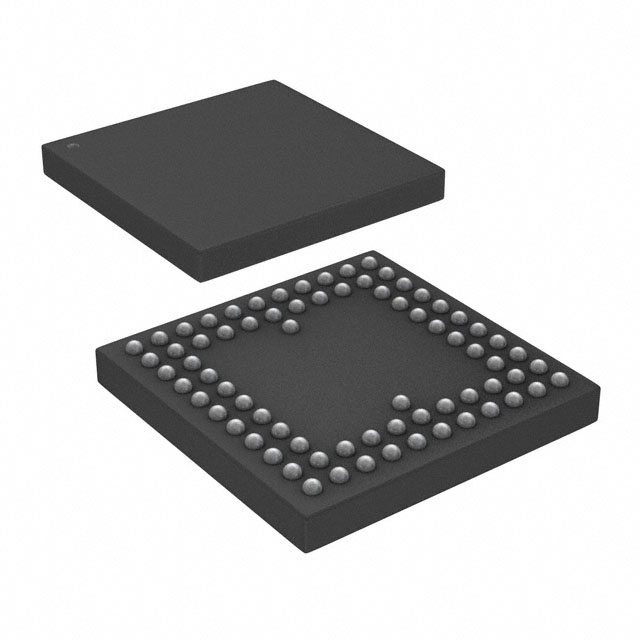

The AD5532BBC-1 is housed in a compact 74-CSPBGA (12x12 mm) package, suitable for surface mounting. Its features make it suitable for applications such as automatic test equipment, optical networks, instrumentation, and industrial control systems.
This DAC utilizes a DSP/microcontroller compatible serial interface for ease of integration into digital systems. The device supports adjustable voltage output ranges determined by external offset and gain settings.
14 bits.
32 channels.
10 volts.
±0.3 LSB maximum.
-40°C to +85°C.
74-LBGA, CSPBGA, specifically 74-CSPBGA (12x12) surface mount.
Listed as RoHS3 Compliant, but this status is unverified.
