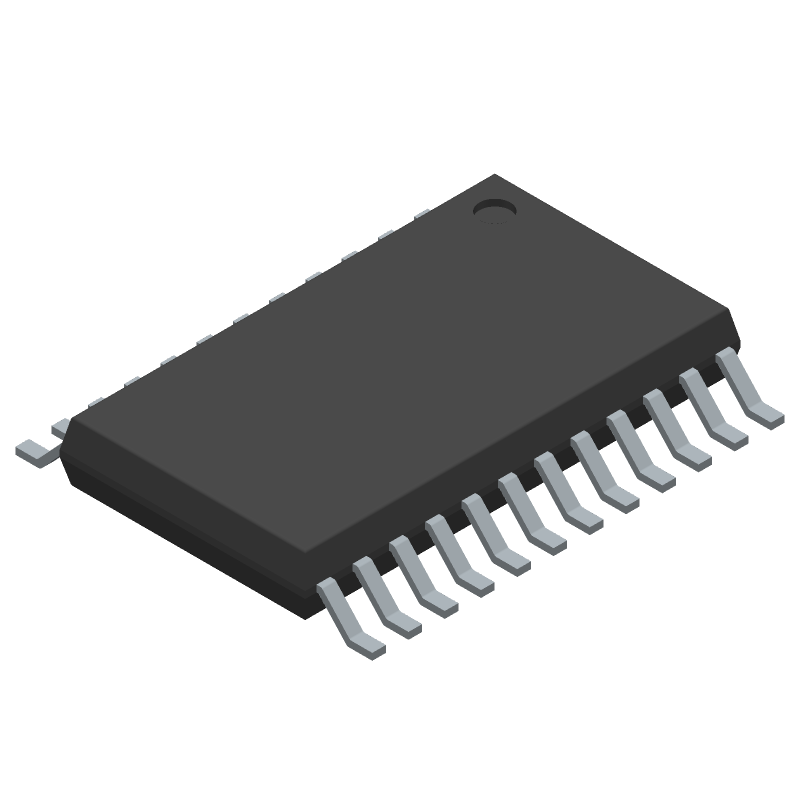

AD5420AREZ-REEL7 The Analog Devices AD5420AREZ-REEL7 is a 16-bit, single-channel current source Digital-to-Analog Converter (DAC). It offers a programmable 4 mA to 20 mA current output and features a serial SPI interface.
Mfr Part #:

AD5420AREZ-REEL7

Available from 3 distributors
Mfr Name: ADI Electronics
ADI Electronics
The Analog Devices AD5420AREZ-REEL7 is a 16-bit, single-channel current source Digital-to-Analog Converter (DAC). It offers a programmable 4 mA to 20 mA current output and features a serial SPI interface.
✓ Total Stock: 12,838 pcs
$ Price Range: $0.99

AD5420AREZ-REEL7 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
7,285 pcs
On Request
7285 pcs On Request 1 On Request On Request 21+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
3,395 pcs
On Request
3395 pcs On Request 1 On Request On Request 19+ On Request On Request
Fe Components ✓
Non-Authorised Inventory information
2,158 pcs
On Request
2158 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD5420AREZ-REEL7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Interface
Lead Spacing
Number of Channels
Package Quantity
Power Dissipation
Resolution
Settling Time
Tape & Reel
View Similar Products (0)

AD5420AREZ-REEL7 Description

Short technical summary and product information.

The AD5420AREZ-REEL7 from Analog Devices is a precision, fully integrated 16-bit Digital-to-Analog Converter (DAC) designed for industrial process control applications. It provides a programmable current source output with ranges including 4 mA to 20 mA, 0 mA to 20 mA, and an overrange function of 0 mA to 24 mA.



Key electrical specifications include a 16-bit resolution, a typical total unadjusted error of ±0.01% FSR, and a typical output drift of ±3 ppm/°C. The device operates with a power supply voltage range of 10.8 V to 40 V and features an output loop compliance to AVDD - 2.5 V. It supports a flexible serial digital interface compatible with SPI and can be operated in 3-wire mode.



This DAC is housed in a 24-lead TSSOP package, suitable for surface mounting. The operating temperature range is -40°C to +85°C, making it robust for various industrial environments. It also includes on-chip output fault detection and an asynchronous clear function.



Applications for the AD5420AREZ-REEL7 include process control, actuator control, Programmable Logic Controllers (PLCs), and HART network connectivity.

AD5420AREZ-REEL7 Quick Information

Product Type: Digital-to-Analog Converter (DAC)
Canonical Name: AD5420AREZ-REEL7 Single-Channel 16-Bit Serial Input Current Source DAC
Subcategory: Current Source DAC

AD5420AREZ-REEL7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AD5420AREZ-REEL7 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

AD5420AREZ-REEL7 Features

  • 16-bit resolution and monotonicity.
  • Programmable 4 mA to 20 mA current output.
  • Typical ±0.01% FSR total unadjusted error.
  • Flexible SPI serial digital interface.
  • Operates from -40°C to +85°C.

AD5420AREZ-REEL7 Applications

  • Ideal for process control systems.
  • Suitable for actuator control applications.
  • Used in Programmable Logic Controllers (PLCs).
  • Enables HART network connectivity.

AD5420AREZ-REEL7 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resolution of the AD5420AREZ-REEL7?

The AD5420AREZ-REEL7 has a 16-bit resolution.

What are the output current ranges for the AD5420AREZ-REEL7?

The output current ranges are 4 mA to 20 mA, 0 mA to 20 mA, or 0 mA to 24 mA.

What is the typical total unadjusted error (TUE) of this DAC?

The typical total unadjusted error (TUE) is ±0.01% FSR.

What is the operating temperature range for the AD5420AREZ-REEL7?

The operating temperature range is -40°C to +85°C.

What package type is the AD5420AREZ-REEL7 supplied in?

The AD5420AREZ-REEL7 is supplied in a TSSOP package.

What serial interface does the AD5420AREZ-REEL7 support?

The AD5420AREZ-REEL7 supports SPI, Serial, and 3-WIRE interfaces.
