The AD534TD is a monolithic, laser-trimmed four-quadrant analog multiplier/divider from Analog Devices. It is designed for high-quality analog signal processing and provides a maximum multiplication error of ±0.25% for the L grade without external trimming.
Key electrical specifications include a typical -3 dB bandwidth of 1 MHz, a slew rate of 20 V/µs, and a settling time of 2 µs. The device operates with a nominal supply voltage of 22 V and a typical supply current of 6 mA. The maximum input voltage is 10 V, and the maximum power dissipation is 500 mW.
The AD534TD is housed in a 14-lead CDIP (Ceramic Dual In-line Package) with a 0.300-inch body width and is designed for through-hole mounting. It is packaged in a tube. The device is rated for an operating temperature range of -55°C to +125°C.
The AD534TD has a maximum accuracy of 0.25% for the AD534L grade.
The operating temperature range is -55°C to +125°C.

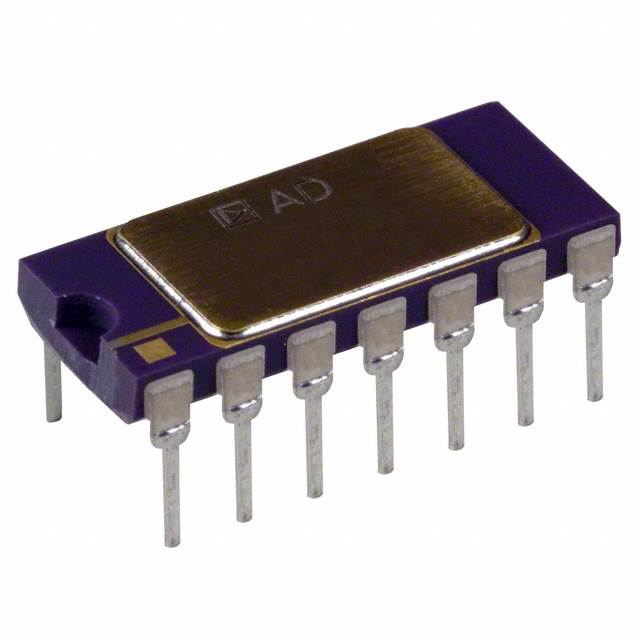

The AD534TD is available in a 14-CDIP (0.300", 7.62mm) through-hole package.
No, the AD534TD is not RoHS compliant and contains lead.
The typical -3 dB bandwidth is 1 MHz.
The nominal operating supply voltage is 22 V.
The AD534TD is a 4-quadrant analog multiplier/divider.
