Mfr Part #:

AD532KH

Mfr Name: Analog Devices / Maxim Integrated

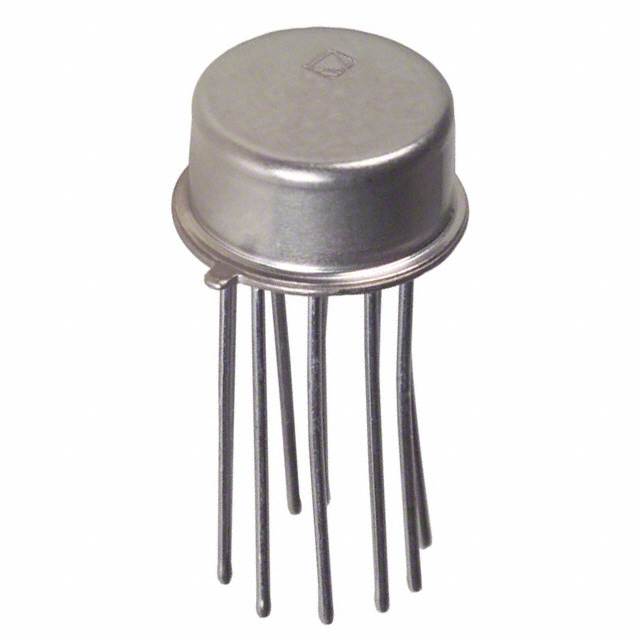

AD532KH is an internally trimmed analog multiplier/divider from Analog Devices. It guarantees ±1.0% maximum 4-quadrant error and ±10V output, housed in a TO-100-10 package.

✓ Total Stock: 10,000 pcs

AD532KH Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	10,000 pcs On Request	10000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

AD532KH Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Analog Multipliers, Dividers
Manufacturer Name	Analog Devices / Maxim Integrated
Function	Analog Multiplier/Divider
Lead Style	Pin
Number of Bits	4-Quadrant
Output Voltage	±10 V
Supplier Device Package	TO-100-10

View Similar Products (0)

AD532KH Description

Short technical summary and product information.

AD532KH is an internally trimmed single-chip analog multiplier/divider from Analog Devices. It provides a 4-quadrant multiplication function with a transfer function of (X1 - X2)(Y1 - Y2)/10 V, and supports division and square-rooting configurations. The device is pretrimmed to achieve a maximum multiplying error of ±1.0% and operates with a nominal ±10V output, eliminating the need for external trimming resistors or an output operational amplifier.

Designed with differential inputs, the AD532KH offers a typical common-mode rejection ratio of 75 dB. Its monolithic construction delivers size, reliability, and cost benefits compared to modular multipliers. The part is housed in a TO-100-10 metal can package (supplier device package: TO-100-10).

Typical applications include multiplication, division, squaring, square rooting, algebraic computation, power measurement, and instrumentation systems. The AD532KH is a suitable drop-in replacement for IC multipliers requiring external trim networks.

AD532KH Quick Information

Product Type: Analog Multiplier/Divider

Canonical Name: Internally Trimmed Integrated Circuit Multiplier

Subcategory: Analog Multipliers, Dividers

AD532KH Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

AD532KH Features

Pretrimmed to ±1.0% maximum multiplying error.
Four-quadrant multiplication with differential inputs.
Output swings ±10V without external trimming.
TO-100-10 metal can package.
Monolithic low-cost integrated circuit construction.

AD532KH Applications

Use for analog multiplication and division circuits.
Square and square-root signal conditioning blocks.
Power measurement and instrumentation systems.
Algebraic computation in analog control loops.

AD532KH FAQs

7 frequently asked questions generated from this part’s specifications.

What is the function of the AD532KH?

The AD532KH is a 4-quadrant analog multiplier/divider.

What is the transfer function of the AD532KH?

(X1 - X2)(Y1 - Y2)/10 V.

What is the maximum multiplying error of the AD532KH?

±1.0% for the AD532K grade.

What is the output voltage swing of the AD532KH?

±10 V.

What package is the AD532KH available in?

TO-100-10 metal can package (supplier device package: TO-100-10).

Is the AD532KH RoHS compliant?

The existing database lists it as RoHS3 Compliant, though this status is unverified.

What is the common-mode rejection ratio of the differential inputs?

Typically 75 dB.
