| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
33 pcs
|
33 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Differential Output | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Bits | |
| Operating Temperature | |
| Output Type | |
| Reference Type | |
| Settling Time | |
| Supplier Device Package |
The AD5315BRMZ is a versatile 10-bit, 4-channel digital to analog converter (DAC) manufactured by Analog Devices Inc. This component is designed for applications requiring precise voltage output conversion.
Key electrical specifications include a 10-bit resolution, enabling fine control over output signals. It supports 4 independent DAC channels, making it suitable for multi-channel systems. The device utilizes an I²C interface for communication, simplifying integration into digital systems. It operates with a wide analog and digital supply voltage range of 2.5V to 5.5V, offering flexibility in power design.
The AD5315BRMZ has a typical settling time of 9µs, ensuring prompt response to input changes. Its integral and differential nonlinearity are within ±0.5 LSB and ±0.05 LSB, respectively, indicating good linearity performance. The DAC architecture is standard for this type of converter.

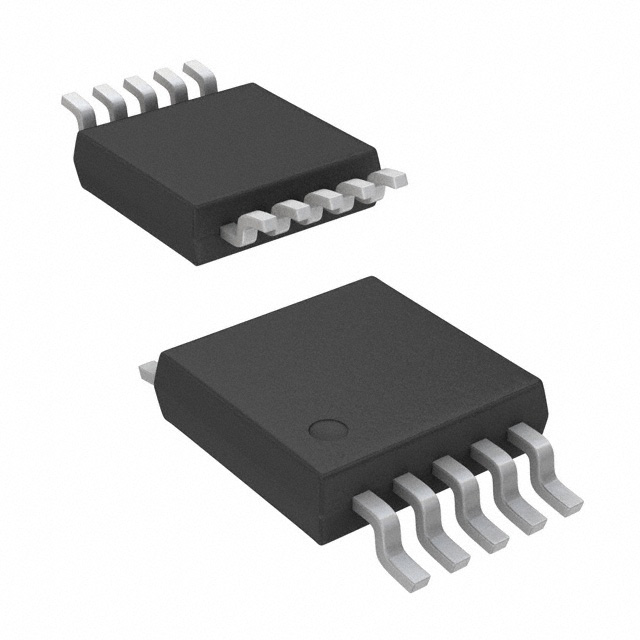

Packaged in a compact 10-MSOP surface-mount configuration, the AD5315BRMZ is suitable for space-constrained designs. It operates across a wide temperature range of -40°C to 105°C, ensuring reliability in various environmental conditions. The component is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.00 | $7.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The analog and digital supply voltage range is 2.5V to 5.5V.
The AD5315BRMZ is available in 10-TFSOP or 10-MSOP packages, surface mount, with supplier device package 10-MSOP.
The operating temperature range is -40°C to 105°C.
It uses the I²C interface.
The typical settling time is 9µs.
It is a 10-bit DAC.
It has 4 channels.
