| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
96 pcs
|
96 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Differential Output | |
| Mounting Type | |
| Number of Bits | |
| Operating Temperature | |
| Output Type | |
| Reference Type | |
| Settling Time | |
| Supplier Device Package |

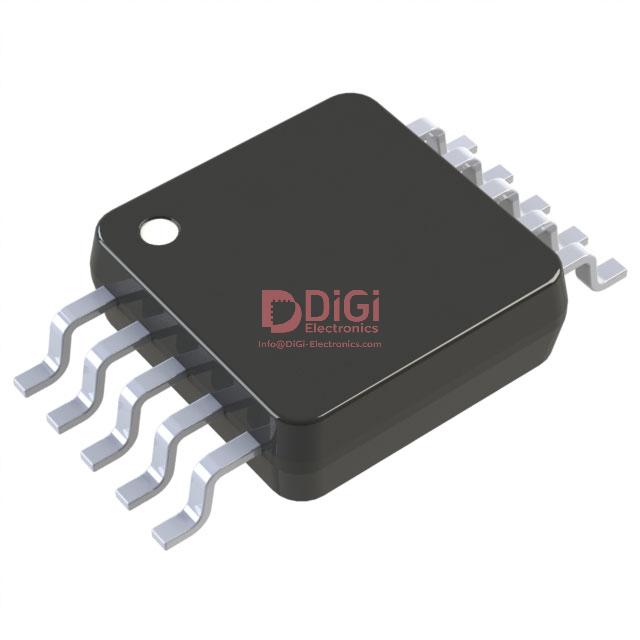

The AD5304BRM from Analog Devices is an 8-bit digital-to-analog converter (DAC) IC designed for various data acquisition applications. This component features 4 channels, providing a voltage output that is buffered for improved performance.
Key electrical specifications include an 8-bit resolution and a settling time of 8µs. It supports both analog and digital supply voltages ranging from 2.5V to 5.5V, making it versatile for different system designs. The integral and differential linearity (INL/DNL) is specified at ±0.15 LSB and ±0.02 LSB, respectively.
This DAC utilizes an external reference and interfaces via SPI or DSP protocols. It is designed to operate within an industrial temperature range of -40°C to 105°C. The device comes in a compact 10-MSOP package, suitable for surface-mount applications.
With its robust specifications and compact form factor, the AD5304BRM is a suitable choice for applications requiring precise digital-to-analog conversion.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.84 | $9.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD5304BRM has an 8-bit resolution.
There are 4 digital-to-analog converters on the AD5304BRM.
The settling time for the AD5304BRM is 8µs.
The AD5304BRM operates with analog and digital supply voltages between 2.5V and 5.5V.
The AD5304BRM operates in a temperature range of -40°C to 105°C.
The AD5304BRM is supplied in a 10-MSOP package.
