| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,600 pcs
|
3600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Configuration | |
| Features | |
| Interface | |
| Lead Style | |
| Memory Type | |
| Mounting Type | |
| Number of Circuits | |
| Number of Taps | |
| Operating Temperature | |
| Resistance | |
| Resistance (Ohms) | |
| Supplier Device Package | |
| Tape & Reel | |
| Taper | |
| Temperature Coefficient | |
| Temperature Coefficient (Typ) | |
| Tolerance | |
| Voltage |
The Analog Devices AD5206BN10 is a 6-channel digital potentiometer designed to replace mechanical potentiometers. It provides 256 discrete resistance positions, allowing for precise digital control of resistance values. The device features a nominal resistance of 10kΩ with a ±30% tolerance and a linear taper.
With an SPI-compatible interface, the AD5206BN10 facilitates easy integration into digital systems. It supports a single supply voltage range of 2.7V to 5.5V and a dual supply range of ±2.3V to ±2.7V. The operating temperature range is from -40°C to 85°C.

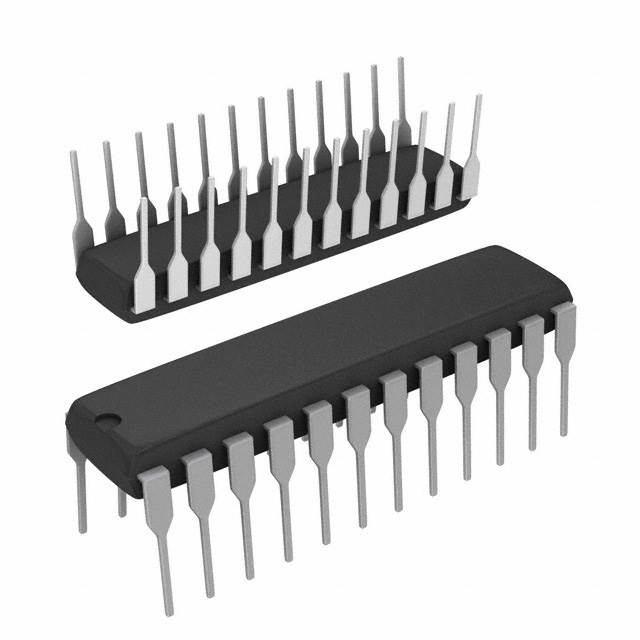

This digital potentiometer is suitable for applications requiring adjustable gain, offset, programmable filters, or voltage-to-current conversion. It is packaged in a 24-pin DIP (Dual In-line Package) and is designed for through-hole mounting.
The device has a typical temperature coefficient of 700 ppm/°C and a -3dB bandwidth of 721kHz. It operates with a low supply current of 12µA.
Single supply 2.7V to 5.5V, dual supply ±2.3V to ±2.7V.
24-PDIP (through-hole).
-40°C to +85°C.
6 channels.
10kΩ resistance with ±30% tolerance.
SPI interface.
No, the memory is volatile, so the wiper position is lost when power is removed.
