| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,296 pcs
|
2296 pcs | On Request | 1 | On Request | On Request | 09+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Industrial Grade | |
| Interface | |
| Lead Spacing | |
| Lead Style | |
| Number of Channels | |
| Number of Positions | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient |

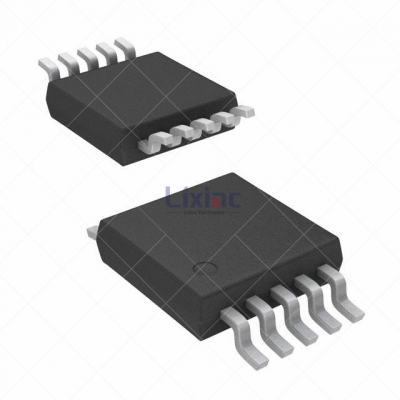

The Analog Devices AD5161BRMZ10 is a versatile 256-position digital potentiometer designed for mechanical potentiometer replacement in new designs. It features a pin-selectable SPI or I2C compatible interface, allowing for flexible communication. This device operates from a single supply voltage ranging from 2.7V to 5.5V and offers a wide operating temperature range of -40°C to +125°C.
Key electrical characteristics include selectable end-to-end resistance values of 5 kΩ, 10 kΩ, 50 kΩ, and 100 kΩ, with a typical temperature coefficient of 45 ppm/°C. The AD5161BRMZ10 also boasts low power consumption with an IDD of 8 μA and a typical bandwidth of 1.2 MHz.
Packaged in a compact 10-lead MSOP (3 mm × 4.9 mm) package, this digital potentiometer is suitable for space-constrained applications. Its design facilitates transducer adjustments for pressure, temperature, and position, among other applications. The SDO output allows for multiple device daisy-chaining, enhancing system scalability.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.17 | $1.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD5161BRMZ10 has 256 positions.
The available end-to-end resistance values are 5 kΩ, 10 kΩ, 50 kΩ, and 100 kΩ.
The AD5161BRMZ10 supports SPI and I2C interfaces.
The operating supply voltage range is 2.7V to 5.5V.
The operating temperature range is -40°C to 125°C.
The AD5161BRMZ10 is supplied in a compact MSOP-10 package.
The AD5161BRMZ10 is RoHS3 Compliant.
