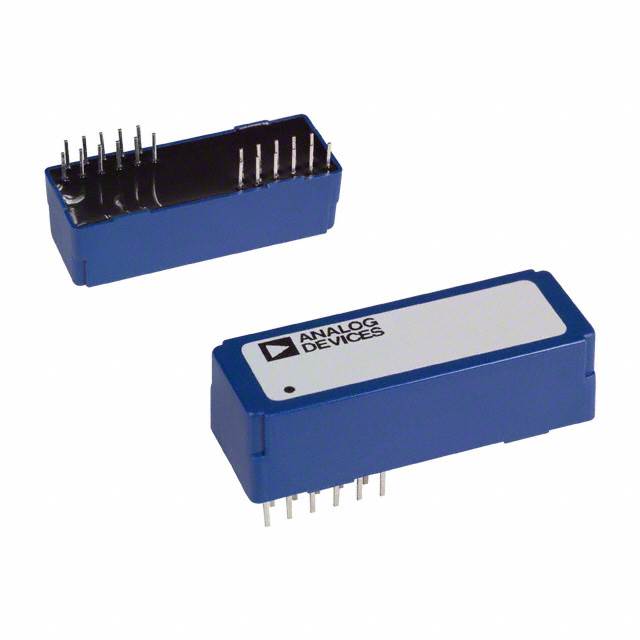

The AD260AND-0 from Analog Devices is a digital isolator designed for general-purpose applications requiring high-speed signal isolation. It utilizes magnetic coupling technology to provide 1750Vrms of isolation.
Key electrical specifications include 5 unidirectional channels, a propagation delay of 25ns, and a logic signal bandwidth of up to 20 MHz. The device also offers a common mode transient immunity of 10kV/µs, ensuring robust performance in noisy environments. It supports isolated power and operates over a temperature range of -25°C to +85°C.
This digital isolator is packaged in a 22-PDIP configuration and is designed for through-hole mounting, making it suitable for various PCB designs. The AD260AND-0 is rated for a maximum isolated power of 1.5W.
Applications for this component include PLC/DCS analog input and output cards, communications bus isolation, general data acquisition, IGBT motor drive controls, and high-speed digital I/O ports.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD260AND-0 provides 1750Vrms of isolation.
The AD260AND-0 has 5 channels.
The operating temperature range for the AD260AND-0 is -25°C to +85°C.
The AD260AND-0 is available in a 22-PDIP package and a 22-DIP Module.
The propagation delay tpLH for the AD260AND-0 is 25ns.
The AD260AND-0 has a minimum common mode transient immunity of 10kV/µs.
