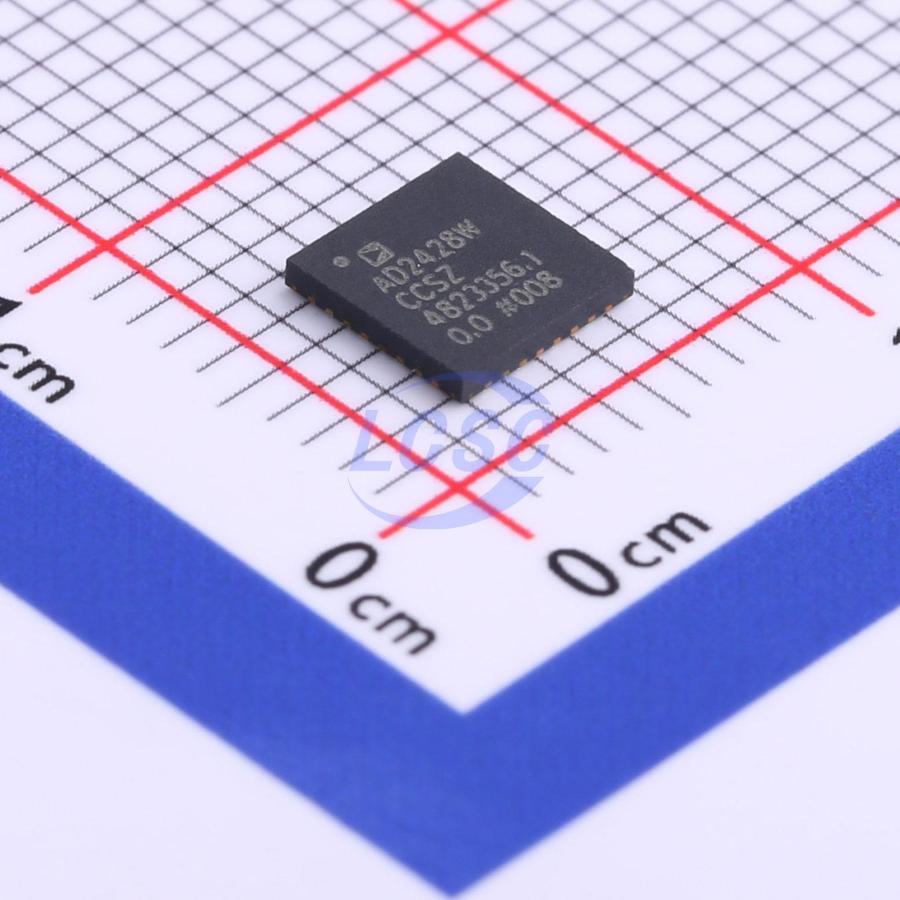

The Analog Devices AD2428WCCSZ is an Automotive Audio Bus A²B Transceiver. It features a Surface Mount, Wettable Flank mounting type and comes in a 32-LFCSP-SS (5x5) package.

✓ Total Stock: 2,211 pcs

$ Price Range: $5.09

AD2428WCCSZ Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	2,110 pcs On Request	2110 pcs	On Request	1	On Request	On Request	24+	On Request	On Request
Husky International Electronic ✓ Non-Authorised Inventory information	100 pcs On Request	100 pcs	On Request	1	On Request	On Request	N/A	On Request	On Request
PROSOFT ELECTRONICS ✓ Non-Authorised Inventory information	1 pcs On Request	1 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

AD2428WCCSZ Description

Short technical summary and product information.

The Analog Devices AD2428WCCSZ is an Automotive Audio Bus A²B Transceiver designed for automotive audio applications. It supports a line topology with a single master and multiple slave configuration, allowing for communication over distances up to 15 meters between nodes and 40 meters overall cable length.

Key features include multichannel I2S/TDM to I2S/TDM data transfer, synchronous clock and phase alignment across all nodes, and low latency slave-to-slave communication. The device also supports I2C for control and status information and GPIO over distance. It is configurable as an A2B bus master or slave, features an I2C interface, and an 8-bit to 32-bit multichannel I2S/TDM interface with programmable data rates.

This transceiver supports up to 32 upstream and 32 downstream channels, with PDM inputs for high dynamic range microphones. It is qualified for automotive applications and offers programmable settings to optimize EMC performance. The AD2428WCCSZ is supplied in a 32-WFQFN Exposed Pad, CSP package and is designed for Surface Mount, Wettable Flank mounting.

Applications include automotive audio communication links, active noise cancellation, and microphone arrays for hands-free and in-car communication systems.

AD2428WCCSZ Quick Information

Product Type: Automotive Audio Bus A²B Transceiver

Series: AD2428W

Canonical Name: AD2428WCCSZ Automotive Audio Bus A²B Transceiver

Subcategory: Automotive Audio Bus Transceiver

AD2428WCCSZ Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

AD2428WCCSZ Estimated Pricing

Qty	Low	High
1+	$5.09	$5.09

Estimated market price range - modelled values for guidance only, not live distributor offers.

AD2428WCCSZ Features

Automotive Audio Bus A²B Transceiver.
Supports multichannel I2S/TDM and I2C.
Configurable as A2B bus master or slave.
Up to 40m overall cable length.
Surface Mount, Wettable Flank mounting.

AD2428WCCSZ Applications

Automotive audio communication link.
Active noise cancellation systems.
Microphone arrays for hands-free communication.
In-car communication systems.
