| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,012 pcs
|
2012 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Efficiency | |
| Mounting Style | |
| PSRR | |
| Quiescent Current | |
| Supply Current |
The AD1994ACPZ is a two-channel, bridged, Class D audio power amplifier with an integrated sigma-delta modulator from ADI Electronics. It is capable of delivering 25W per channel into a 6 Ohm load or 50W in mono mode. The integrated modulator accepts a 1Vrms input signal and generates a switching waveform to directly drive loudspeakers.
Key electrical specifications include a typical supply voltage of 4.50V, a supply current of 260mA, and a quiescent current of 20.0mA. It boasts a low total harmonic distortion plus noise (THD+N) of 0.005% and a dynamic range of 101.5dB. The amplifier operates within a temperature range of -40°C to 85°C.

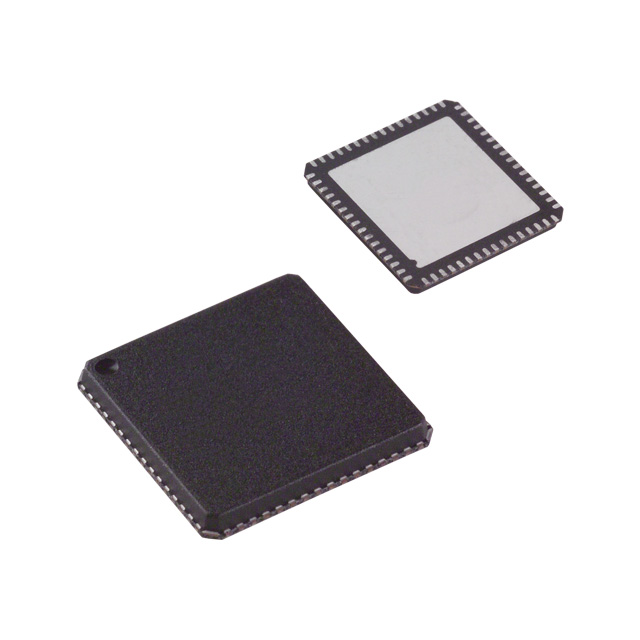

This component is housed in a 64-lead LFCSP EP-64 package and is designed for surface mounting. Its features include protection against short circuits and overheating, as well as click-free power up/down and mute functions. Applications include flat-panel televisions, automotive audio systems, PC audio systems, and mini component systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.87 | $1.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AD1994ACPZ can deliver 25W per channel in stereo mode or 50W in mono mode.
The typical supply voltage for the AD1994ACPZ is 4.50V.
The AD1994ACPZ operates from -40°C to 85°C.
The AD1994ACPZ is available in a 64-lead LFCSP EP-64 package.
Yes, the AD1994ACPZ is RoHS3 Compliant.
