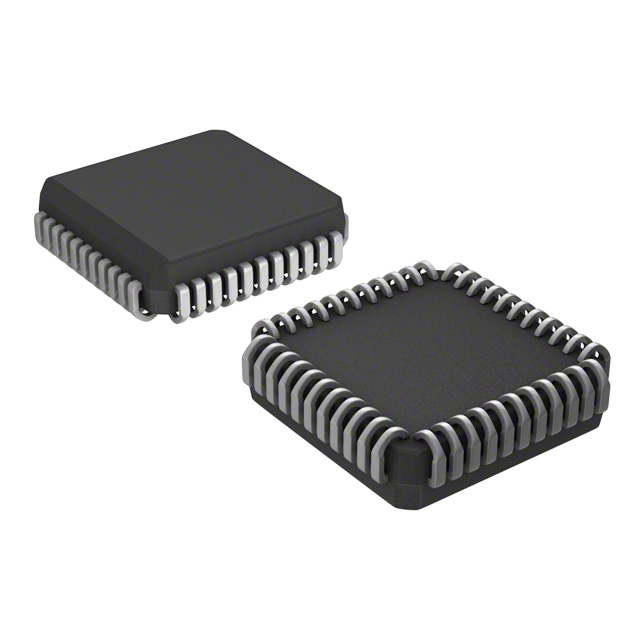

AD1849KP The AD1849KP is a stereo audio CODEC from Analog Devices with 16-bit resolution, 2 ADCs and 2 DACs, and a serial data interface. It operates from a 5V supply and is housed in a 44-PLCC surface-mount package.
Mfr Part #:

AD1849KP

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The AD1849KP is a stereo audio CODEC from Analog Devices with 16-bit resolution, 2 ADCs and 2 DACs, and a serial data interface. It operates from a 5V supply and is housed in a 44-PLCC surface-mount package.
✓ Total Stock: 6,987 pcs

AD1849KP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,987 pcs
On Request
6987 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD1849KP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Interface
Dynamic Range, ADCs
Lead Style
Mounting Type
Number of ADCs
Operating Temperature
Resolution (Bits)
Sigma Delta
Supplier Device Package
Type
Voltage
View Similar Products (0)

AD1849KP Description

Short technical summary and product information.

The AD1849KP is a single-chip stereo audio CODEC integrating a 16-bit sigma-delta ADC and DAC pair. It features a serial data interface and operates from a 4.75V to 5.25V analog and digital supply. The device provides a typical dynamic range of 83 dB for the ADCs and 86 dB for the DACs.



This CODEC is designed for surface-mount assembly in a 44-lead PLCC (J-Lead) package with a supplier device package size of 16.59x16.59 mm. It supports an operating temperature range of 0°C to 70°C.



The AD1849KP is suitable for audio processing applications requiring stereo input and output with integrated conversion. Its serial interface allows straightforward connection to digital signal processors and microcontrollers.

AD1849KP Quick Information

Product Type: Stereo Audio CODEC
Canonical Name: AD1849KP Stereo Audio CODEC
Subcategory: Interface CODECs

AD1849KP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AD1849KP Features

  • 16-bit sigma-delta stereo audio CODEC.
  • 2 ADCs and 2 DACs integrated.
  • Serial data interface for connectivity.
  • Operates from 4.75V to 5.25V supply.
  • Surface-mount 44-PLCC package.

AD1849KP Applications

  • Stereo audio recording and playback systems.
  • Digital audio processing with DSP interface.
  • Embedded audio codec applications.
  • Multimedia and communication devices.

AD1849KP FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resolution of the AD1849KP CODEC?

The AD1849KP has a 16-bit resolution.

How many ADCs and DACs does the AD1849KP have?

It has 2 ADCs and 2 DACs.

What is the operating temperature range of the AD1849KP?

The operating temperature range is 0°C to 70°C.

What is the package type for the AD1849KP?

The AD1849KP is packaged in a 44-LCC (J-Lead) which corresponds to a 44-PLCC (16.59x16.59) supplier device package.

What is the supply voltage requirement for the AD1849KP?

The analog and digital supply voltage range is 4.75V to 5.25V.

Does the AD1849KP use sigma-delta conversion?

Yes, it uses sigma-delta conversion.

What is the typical dynamic range of the AD1849KP?

The typical dynamic range is 83 dB for the ADCs and 86 dB for the DACs.
