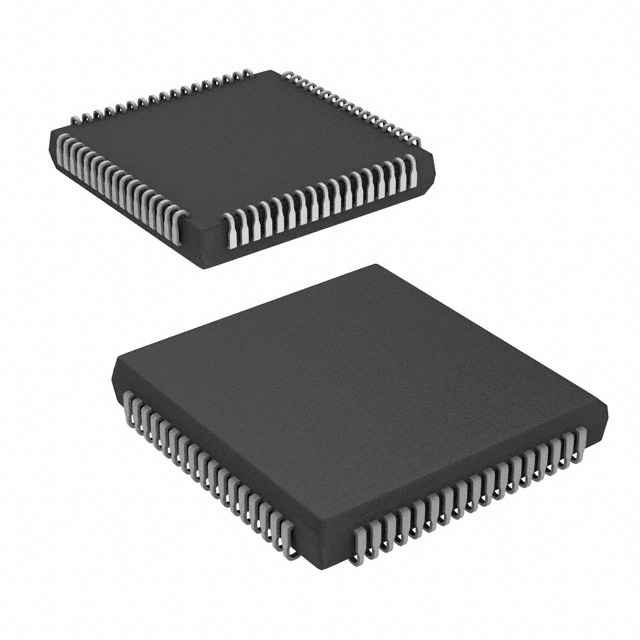

AD1845JP The AD1845JP is a 16-bit stereo audio CODEC with 2 ADCs and 2 DACs, operating from a 4.75V to 5.25V supply. It is housed in a 68-PLCC surface-mount package.
Mfr Part #:

AD1845JP

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The AD1845JP is a 16-bit stereo audio CODEC with 2 ADCs and 2 DACs, operating from a 4.75V to 5.25V supply. It is housed in a 68-PLCC surface-mount package.
✓ Total Stock: 6,548 pcs

AD1845JP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,548 pcs
On Request
6548 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD1845JP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Dynamic Range, ADCs
Lead Style
Mounting Type
Number of ADCs
Operating Temperature
Resolution (Bits)
Sigma Delta
Supplier Device Package
Type
Voltage
View Similar Products (0)

AD1845JP Description

Short technical summary and product information.

The AD1845JP is a stereo audio CODEC designed for digital audio processing applications. It features 16-bit resolution with 2 analog-to-digital converters and 2 digital-to-analog converters, providing a dynamic range of 81 dB for the ADCs and 82 dB for the DACs. The device incorporates sigma-delta modulation for high-quality audio conversion.



The CODEC operates from a supply voltage range of 4.75V to 5.25V and is specified for a temperature range of 0°C to 70°C. It is offered in a 68-lead PLCC (J-Lead) surface-mount package, making it suitable for compact PCB designs. The AD1845JP is RoHS3 compliant and has an MSL rating of 1 (unlimited).

AD1845JP Quick Information

Product Type: Stereo Audio CODEC
Canonical Name: AD1845JP Stereo Audio CODEC
Subcategory: Stereo CODEC

AD1845JP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AD1845JP Features

  • 16-bit stereo audio CODEC with sigma-delta modulation.
  • 2 ADCs and 2 DACs for full-duplex operation.
  • ADC dynamic range 81 dB, DAC dynamic range 82 dB.
  • Operates from 4.75V to 5.25V supply voltage.
  • Surface-mount 68-PLCC (J-Lead) package.

AD1845JP Applications

  • Digital audio processing in consumer electronics.
  • Audio signal conversion in industrial systems.
  • Embedded audio codec for communication devices.
  • Stereo audio recording and playback systems.

AD1845JP FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resolution of the AD1845JP?

The AD1845JP has a resolution of 16 bits.

How many ADCs and DACs does the AD1845JP have?

The AD1845JP has 2 ADCs and 2 DACs.

What is the supply voltage range for the AD1845JP?

The supply voltage range is 4.75V to 5.25V.

What is the operating temperature range of the AD1845JP?

The operating temperature range is 0°C to 70°C.

What package does the AD1845JP come in?

The AD1845JP is available in a 68-PLCC (24.23x24.23 mm) surface-mount package.

Does the AD1845JP use sigma-delta modulation?

Yes, the AD1845JP features sigma-delta modulation.

What is the dynamic range of the AD1845JP?

The dynamic range is 81 dB for the ADCs and 82 dB for the DACs.
