| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bearing Type | |
| Dimensions | |
| Housing Material | |
| Ingress Protection | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Output Signal | |
| Power Consumption | |
| Rated Current | |
| Rated Voltage | |
| Storage Temperature | |
| Termination | |
| Voltage Range | |
| Weight |

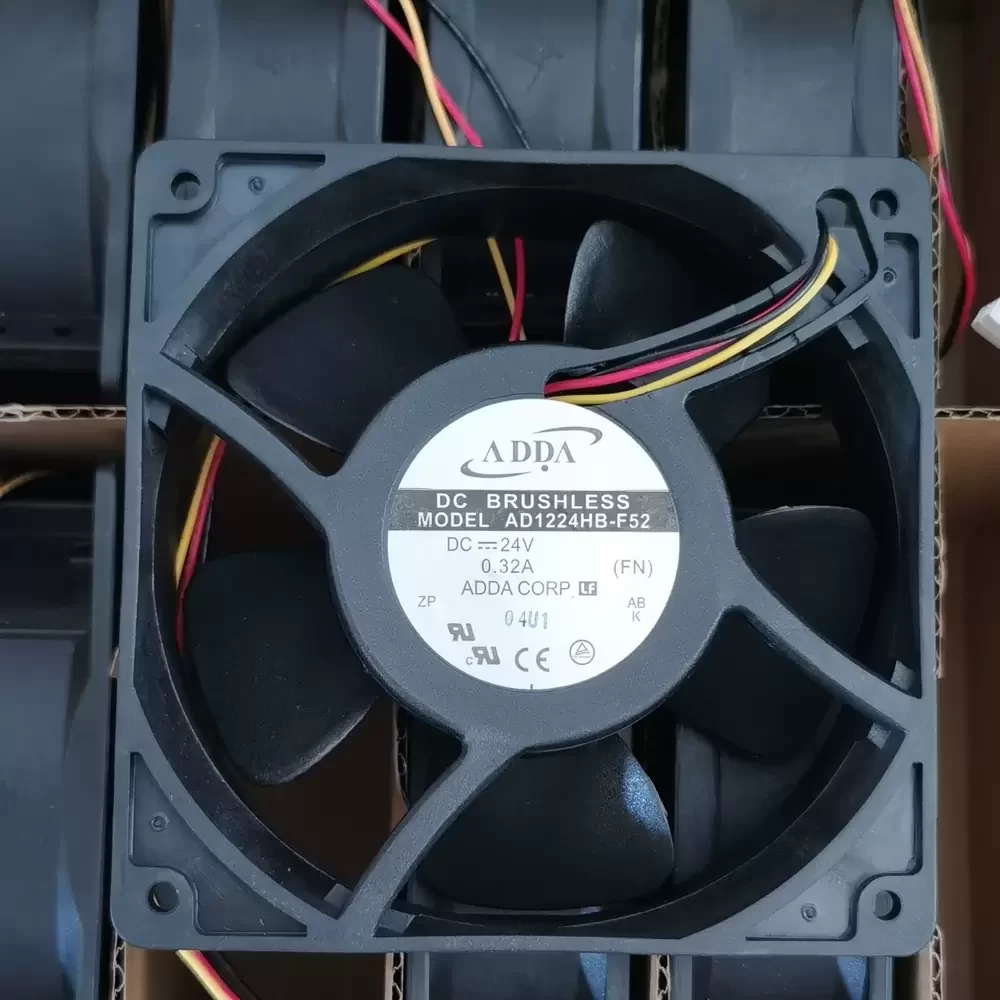

The ADDA AD1224HB-F52 is a precision-engineered axial cooling fan designed for critical thermal management in rigorous industrial environments. It operates at a rated voltage of 24VDC with a consumption of 7.68W and a current draw of 0.32A.
This fan features a dual ball bearing system, ensuring minimized rotational friction and extended operational longevity. The aerodynamic impeller design optimizes airflow dynamics, effectively reducing thermal impedance within high-density electronic enclosures. Constructed with high-grade PBT thermoplastic materials, it maintains structural rigidity under thermal stress.
Key specifications include a rated speed of 2800 RPM, a maximum airflow of 105.0 CFM, and a maximum static pressure of 8.8 mmH₂O. The dimensions are 120 x 120 x 38 mm, and it weighs 250g. The operating temperature range is -10°C to +70°C.
Engineered for versatility and reliability, the AD1224HB-F52 is suitable for demanding industrial applications such as CNC machinery control panels, server rack ventilation, telecommunications cabinets, and industrial power supply cooling. It also suits medical instrumentation and automation equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage for the AD1224HB-F52 cooling fan is 24 VDC.
The maximum airflow of the AD1224HB-F52 fan is 105.0 CFM.
The AD1224HB-F52 fan uses a Dual Ball Bearing.
The dimensions of the AD1224HB-F52 cooling fan are 120 x 120 x 38 mm.
The operating temperature range for this fan is -10°C to +70°C.
