| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Interface | |
| Differential Output | |
| INL | |
| Mounting Type | |
| Number of Bits | |
| Number of D | |
| Number of Pins | |
| Operating Temperature | |
| Output Type | |
| Reference Type | |
| Supplier Device Package | |
| Voltage |
The AD1139J is an 18-bit digital-to-analog converter (DAC) manufactured by Analog Devices. It offers high-resolution conversion with a parallel data interface, making it suitable for applications requiring fast and precise analog output. The device features a single current unbuffered output channel and an internal reference, simplifying external component requirements.
Key electrical specifications include an integral non-linearity (INL) of ±1 LSB maximum and differential non-linearity (DNL) of ±1 LSB maximum. The DAC operates with dual analog supplies of ±15 V and a digital supply of 5 V. It is designed for a temperature range of 0°C to 70°C, making it suitable for commercial and industrial environments.

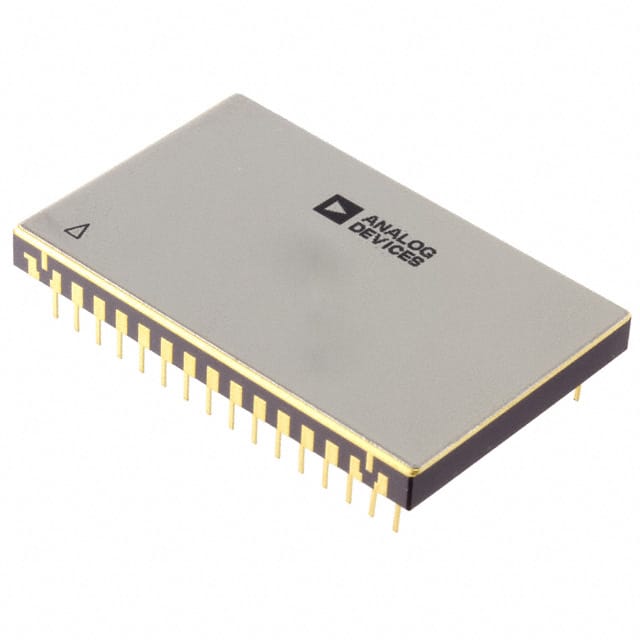

The AD1139J is housed in a 32-lead CDIP (Ceramic Dual In-line Package) with a through-hole mounting style. The supplier device package is designated as 32-BBDIP-H. This robust package provides reliable performance in demanding applications.
The AD1139J requires ±15V analog supply and 5V digital supply.
The AD1139J is available in a 32-CDIP (0.910", 23.12mm) through-hole package, also known as 32-BBDIP-H.
The AD1139J operates over a temperature range of 0°C to 70°C.
The AD1139J is listed as RoHS3 compliant.
18 bits.
1 channel.
Parallel interface.
