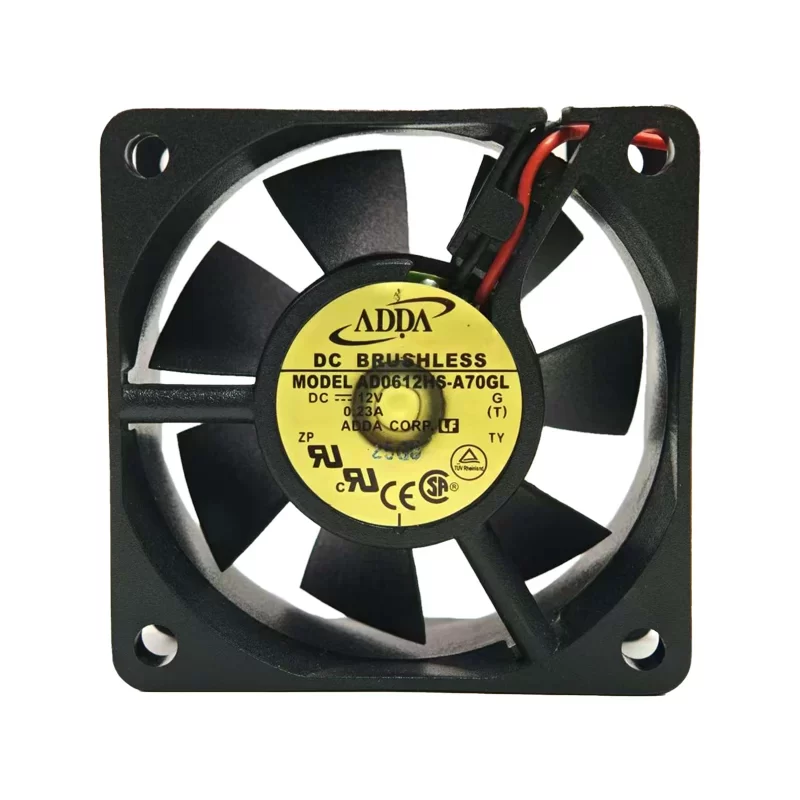

The ADDA AD0612HS-A70GL is a high-performance DC Axial Fan with dimensions of 60x60x25 mm. Operating at 12 V, this fan has a rated current of 0.23 A and a power consumption of 2.76 W. It operates at a nominal speed of 4,500 RPM with 7 blades, delivering an airflow of 39.42 m3/h (23.2 CFM) and a static pressure of 46.8 Pa (0.188 inAq), with a noise level of 32.3 dB(A).
This fan utilizes a sleeve bearing system and a brushless DC motor design. The frame and impeller are constructed from UL94V-0 rated plastic. It operates within a temperature range of -10 °C to +70 °C and has a life expectancy of 30,000 hours. Safety approvals include UL, cUL, TUV, CSA, and CE.
The AD0612HS-A70GL provides a cost-effective cooling solution for components requiring medium-to-high airflow in a 60x60 mm form factor. It is commonly used in consumer electronics, small appliances, and general-purpose ventilation where initial cost is prioritized.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the ADA ad0612hs-a70gl fan is 12 V.
The operating temperature range for the ADA ad0612hs-a70gl is from -10 °C to +70 °C.
The ADA ad0612hs-a70gl fan provides an airflow of 39.42 m3/h (23.2 CFM).
The nominal speed of the ADA ad0612hs-a70gl fan is 4,500 RPM.
The dimensions of the ADA ad0612hs-a70gl fan are 60x60x25 mm.
The ADA ad0612hs-a70gl uses a Sleeve Bearing.
The noise level of the ADA ad0612hs-a70gl fan is 32.3 dB(A).
