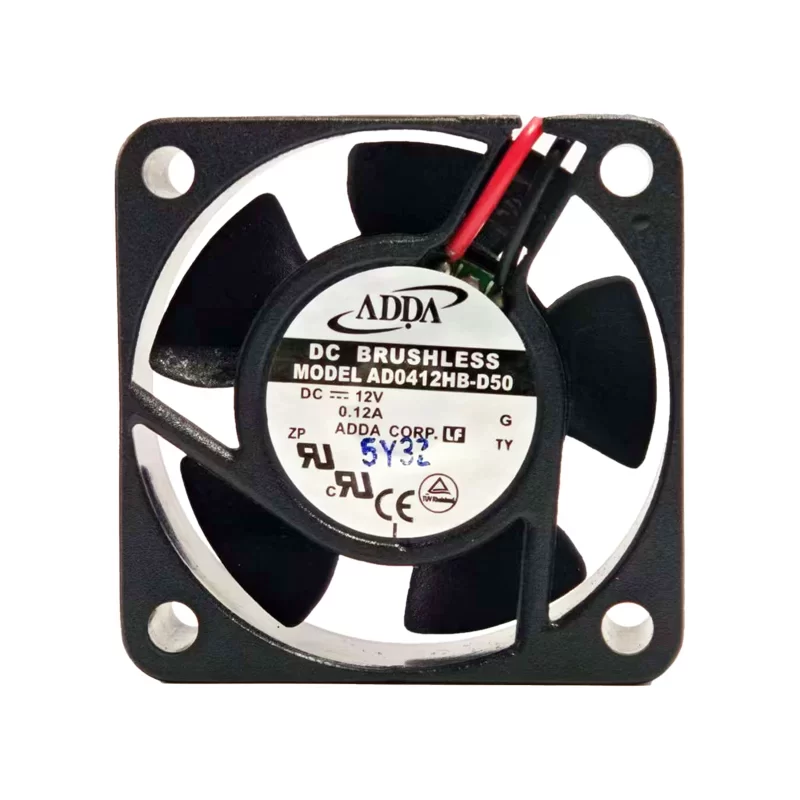

The ADDA AD0412HB-D50 is a high-performance DC axial fan with dimensions of 40x40x15 mm. Operating at a nominal voltage of 12V, this fan has a rated current of 0.12A and a power consumption of 1.44W. It achieves a nominal speed of 8,000 RPM, providing a significant airflow of 15.6 m3/h (9.2 CFM) and a static pressure of 71.5 Pa (0.287 inAq). The noise level is rated at 39.3 dB(A).
This fan features a durable ball bearing system and a brushless DC motor design for reliability and longevity, with an expected life expectancy of 70,000 hours. It has 5 blades and uses a 2-wire leads termination for straightforward power connection. The frame and impeller are constructed from UL94V-0 rated plastic.
With its compact size and efficient cooling capabilities, the AD0412HB-D50 is suitable for high-density thermal management in space-constrained electronic devices. Applications include 1U network switches, small servers, mini PC systems, and industrial automation control units that require high static pressure performance. The operating temperature range is -10°C to +70°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 12 V.
The operating temperature range is -10 °C to +70 °C.
The rated current is 0.12 A.
The power consumption is 1.44 W.
The nominal speed is 8,000 RPM.
The airflow is 9.2 CFM (15.6 m³/h).
The dimensions are 40 x 40 x 15 mm.
