| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bearing Type | |
| Dimensions | |
| Operating Voltage | |
| Power Consumption | |
| Rated Current | |
| SVHC Present | |
| Static Pressure | |
| Termination | |
| Weight |

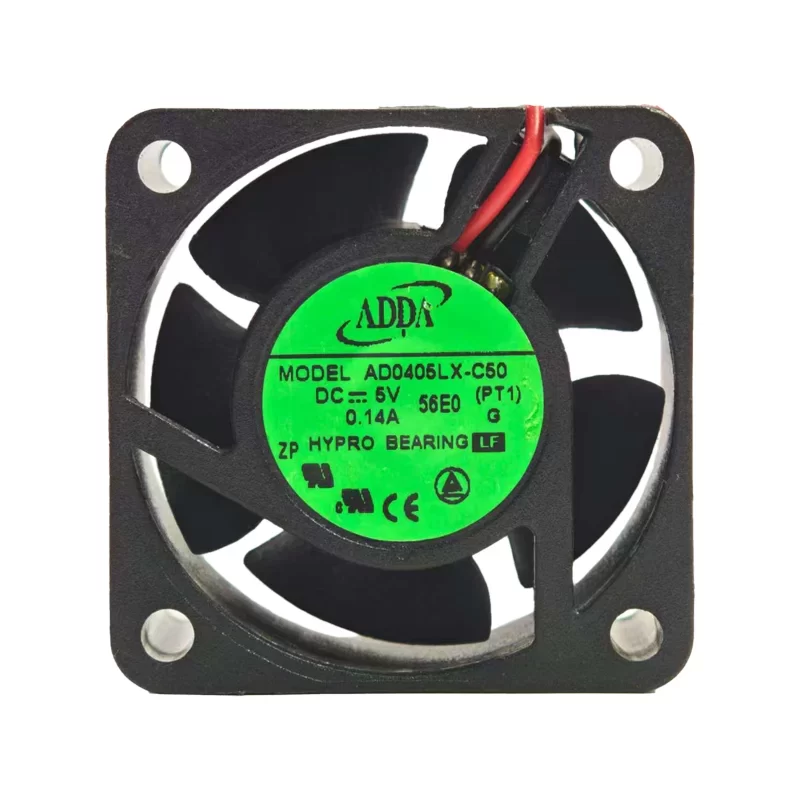

The ADDA AD0405LX-C50 is a high-performance DC axial fan with dimensions of 40x40x20 mm. Operating at 5V, this low-speed model has a rated current of 0.14A and a power consumption of 0.70W.
It delivers an airflow of 12.23 m3/h (7.2 CFM) and a static pressure of 35.35 Pa at a nominal speed of 5,700 RPM. The fan features a Hypro bearing system, five blades, and a low noise level of 22.4 dB(A), making it suitable for noise-sensitive applications.
This fan is primarily used for cooling components in low-power 5V systems, including routers, network devices, mini PCs, small appliances, 1U and 2U low-profile equipment, and embedded electronic boards where acoustic noise must be minimized. The frame and impeller are constructed from UL94V-0 rated plastic.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 5V nominal.
The rated current is 0.14A.
It provides 12.23 m³/h (7.2 CFM) of airflow.
The noise level is 22.4 dB(A).
The dimensions are 40 x 40 x 20 mm.
It uses a Hypro bearing.
It has UL, CUL, TUV, and CE safety approvals.
