| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

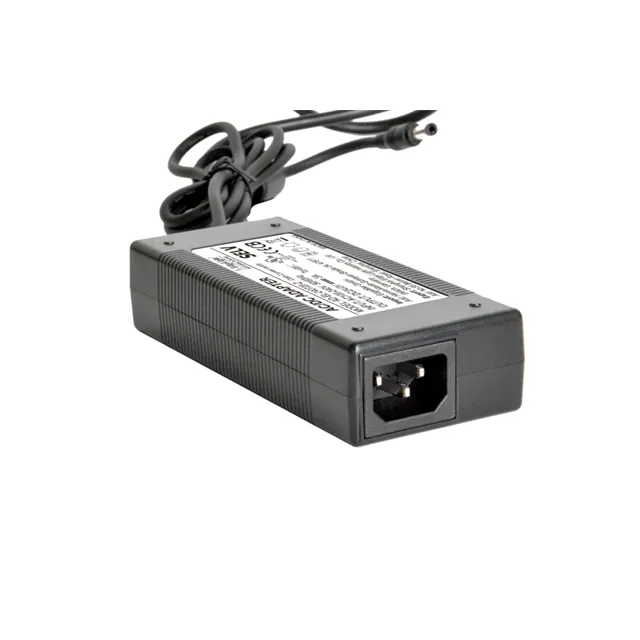

The Edgelight LLC AD-EL-240720-Z is an AC/DC desktop adapter with a power output of 72W and a voltage rating of 24V. It is designed for ITE (Commercial) applications and utilizes an IEC 320-C14 input connector.
This adapter operates within a temperature range of -20°C to 50°C and has a no-load power consumption of 1W. Its dimensions are 140.0mm in length, 60.0mm in width, and 32.0mm in height. The adapter has an efficiency rating of 84% and a current rating of 3A.
Compliance and safety standards include 60950-1, with approval agencies such as CB, CE, cULus, and UL. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1. It is designed for international region utilization and features a positive center polarization.
The adapter is a Desktop (Class I) form factor and includes a cord for input connection.
The AD-EL-240720-Z provides a 24V output at 3A.
The adapter is rated for 72W.
The operating temperature range is -20°C to 50°C.
It uses an IEC 320-C14 input connector.
The efficiency is 84%.
The dimensions are 140.0mm x 60.0mm x 32.0mm.
It is a Desktop (Class I) adapter.
