| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

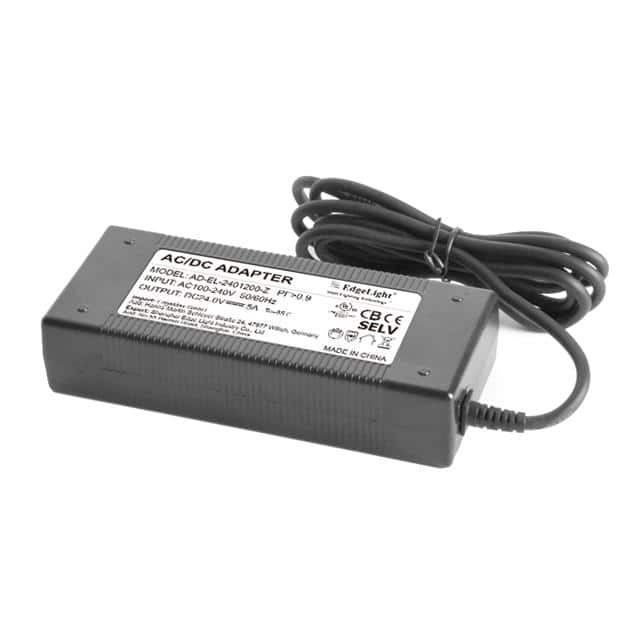

This AC/DC desktop adapter from Edgelight LLC, model AD-EL-2401200-Z, delivers 120W of power with a stable 24V output and a maximum current of 5A. It is designed for ITE (Commercial) applications and features a high efficiency rating of 91%.
The adapter operates across a wide input voltage range of 100-240 VAC, making it suitable for international use. It includes protection features such as over-current and short-circuit protection. The unit is housed in a desktop form factor (Class I) and utilizes an IEC 320-C14 input connector.
With dimensions of 171.5mm x 72.0mm x 33.1mm, it offers a compact solution for power delivery. The operating temperature range is -20°C to 50°C, ensuring reliable performance in various environments. The adapter also features a low no-load power consumption of 850mW.
The output voltage is 24V and the output current is 5A.
The power rating is 120W.
The efficiency is 91%.
It accepts a universal input of 100VAC to 240VAC.
It uses an IEC 320-C14 input connector.
The operating temperature range is -20°C to 50°C.
It has over current protection at 9A and short circuit protection.
