| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
55 pcs
|
55 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style |

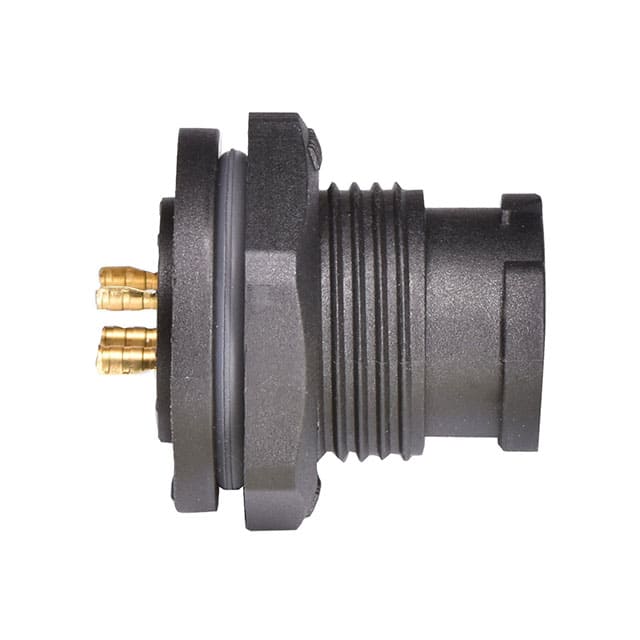

The Amphenol LTW AD-03PMMS-QC8001 is a 3 position male pin circular connector receptacle designed for reliable signal and power connections in demanding environments. It features a push-pull fastening mechanism and a keyed orientation for secure mating. The connector is constructed with a glass-filled polyamide (PA) nylon shell and gold-plated contacts, ensuring durability and corrosion resistance.
This connector is rated for 5A current and supports an operating temperature range of -40°C to 105°C. It offers IP68 ingress protection, making it dust tight and waterproof for outdoor or industrial applications. The panel mount design with bulkhead front side nut mounting feature allows for easy installation through a panel cutout.
The solder cup termination style simplifies field wiring, and the UL94 V-0 flammability rating ensures safety in high-temperature environments. The unshielded design is suitable for applications where electromagnetic interference is not a primary concern.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.56 | $5.56 |
| 10+ | $4.72 | $4.72 |
| 20+ | $4.43 | $4.43 |
| 50+ | $4.21 | $4.21 |
| 100+ | $4.01 | $4.01 |
| 200+ | $3.76 | $3.76 |
| 500+ | $3.58 | $3.58 |
| 1,000+ | $3.34 | $3.34 |
| 2,000+ | $3.20 | $3.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a receptacle with male pins.
It has 3 data positions.
Panel mount with bulkhead front side nut.
5A.
IP68 - dust tight and waterproof.
-40°C to 105°C.
Polyamide (PA), Nylon, Glass Filled.
