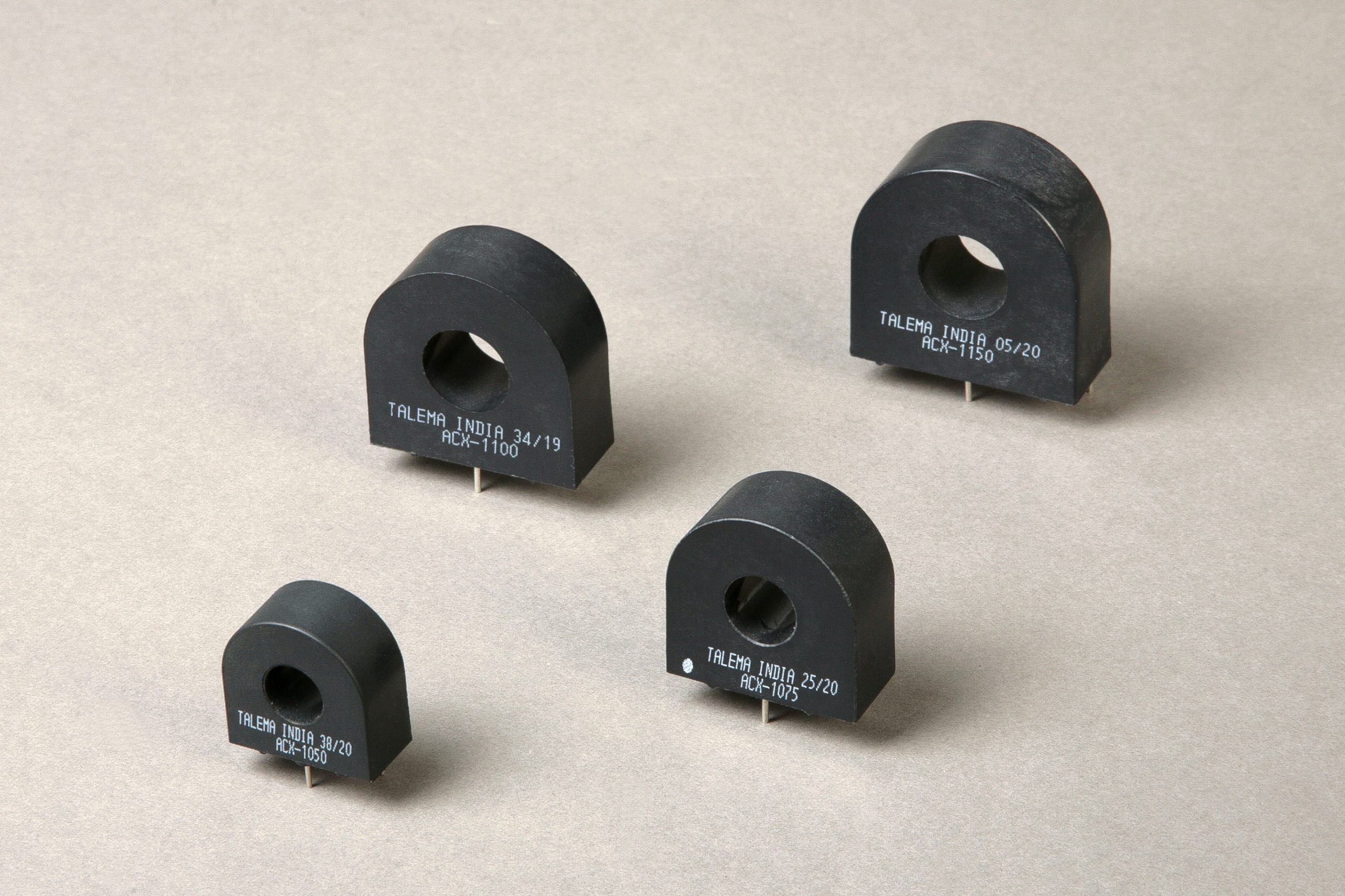

The TALEMA ACX-1050 is a high-accuracy current sense transformer from the ACX Series, designed for precise current measurement. It offers a 2500:1 turns ratio and a primary current range of 50A to 150A, with a specific rating of 50A for this model.
Key electrical specifications include a 1% typical accuracy, an operating frequency range of 50/60Hz, and a rated burden resistance of 33 Ohms. The transformer provides 4KVrms dielectric withstand voltage, ensuring robust performance in demanding environments. It operates within a temperature range of -40°C to +85°C.
This transformer features a non-invasive, solid core design with PC pin termination for through-hole mounting. Its compact dimensions, with a height of 23.80mm and width of 11.12mm, make it suitable for space-constrained PCB applications. The materials used are UL94V-0 rated.
Applications for the ACX Series include ground fault detection and current overload monitoring. The ACX-1050 and ACX-1075 models are particularly noted for their use in EV charging systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.00 | $3.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The primary current range for the ACX Series is 50A to 150A.
The typical accuracy of the TALEMA ACX-1050 transformer is 1%.
The turns ratio of the ACX-1050 current transformer is 2500:1.
The operating temperature range is -40 to +85°C.
The ACX-1050 transformer is designed for through-hole mounting.
The dielectric withstand voltage is 4KVrms.
