| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100,000 pcs
|
100000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,230 pcs
|
2230 pcs | On Request | 1 | On Request | On Request | 0809+0817+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Rating (Current) | |
| Lead Style | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Release Time | |
| Switching Voltage | |
| Termination Style |

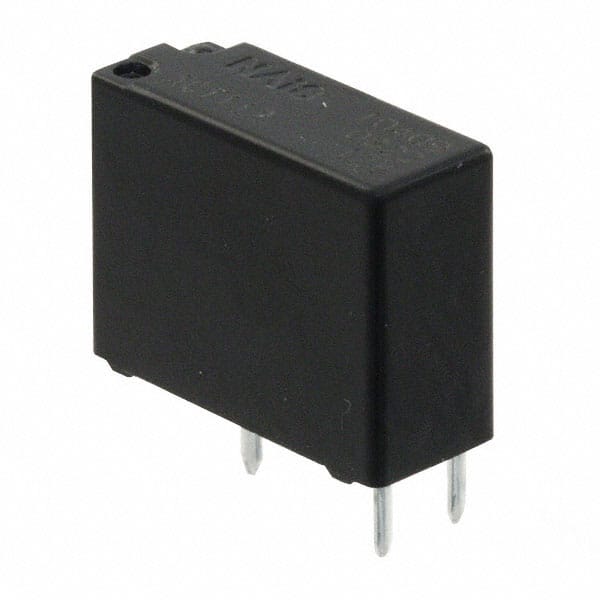

The Panasonic ACTP112 is a CT Relay designed for automotive applications. It features a 1 Form C (SPDT) contact configuration, capable of handling up to 30A at 14VDC.
This relay operates on a 12VDC coil voltage with a coil current of 83.3 mA. It requires a minimum of 7.2 VDC to operate and must release by 1 VDC. Both the operate and release times are rated at 10 ms.
Designed for through-hole mounting with PC pin termination, the ACTP112 operates within a temperature range of -40°C to 85°C. It is specified as RoHS3 Compliant, REACH Unaffected, and has a Moisture Sensitivity Level (MSL) of 1.
Its high carrying current capability and small, slim form factor make it suitable for various automotive electronic control systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage for the ACTP112 relay is 12 VDC.
The contacts of the ACTP112 relay are rated for a maximum current of 30 A.
The ACTP112 relay can operate in temperatures ranging from -40°C to 85°C.
The ACTP112 relay has an SPDT (1 Form C) contact form.
The ACTP112 relay is designed for through-hole mounting.
