| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,382 pcs
|
5382 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request | |
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request | |
|
3,278 pcs
|
3278 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
82 pcs
|
82 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Ratings | |
| Voltage Rating |

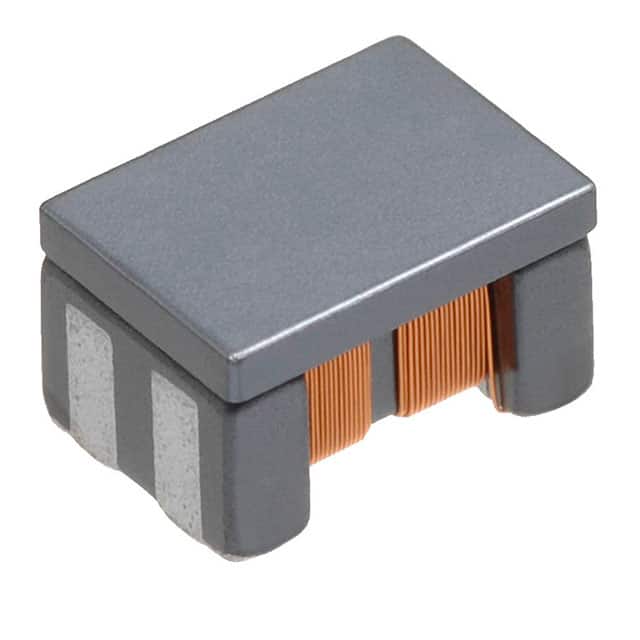

The TDK ACT45L-201-2P-TL000 is a 2-line common mode choke designed for signal line filtering. It features an inductance of 200µH measured at 100kHz, with a maximum DC resistance of 4.5 Ohms. The component is rated for a maximum current of 100mA and a voltage of 50V.
This surface mount device uses a horizontal 4 PC pad package, measuring 4.50mm x 3.20mm with a maximum height of 2.94mm. It operates over a temperature range of -40°C to 105°C and is AEC-Q200 qualified for automotive applications.
According to the database, the part is listed as RoHS3 compliant with an MSL of 1 (unlimited) and is REACH unaffected, though these compliance claims are currently unverified. Common applications include EMI suppression in automotive electronics, DC power supply lines, and signal line noise filtering.
| Qty | Low | High |
|---|---|---|
| 2,500+ | $1.24 | $1.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50V
Horizontal, 4 PC Pad
-40°C to 105°C
According to the database, it is listed as RoHS3 Compliant (unverified).
200µH at 100kHz
100mA
Yes, it is AEC-Q200 rated.
