| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
35,570 pcs
|
35570 pcs | On Request | 1 | On Request | On Request | 2013+ | On Request | On Request | |
|
2,370 pcs
|
2370 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,136 pcs
|
1136 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
88 pcs
|
88 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Impedance @ Frequency | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Ratings | |
| Voltage Rating |

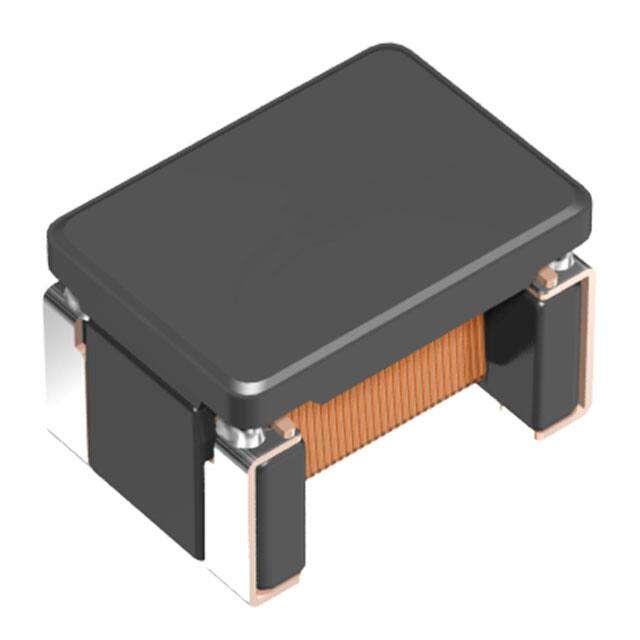

The TDK ACT45B-110-2P-TL003 is a surface mount common mode choke designed for signal line filtering. It features two lines with a common mode inductance of 11µH at 100 kHz and an impedance of 600Ω at 10 MHz.
Electrical characteristics: The component has a maximum DC resistance of 600 mΩ and a current rating of 250 mA. It is rated for a maximum voltage of 50 V. The operating temperature range is -40°C to 150°C, making it suitable for automotive and industrial environments.
Mechanical and compliance: The choke is packaged in a horizontal, 4 PC pad package with dimensions of 4.50 mm x 3.20 mm x 3.00 mm (max height). It is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited floor life). The part is AEC-Q200 qualified, indicating reliability for automotive applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.28 | $1.28 |
| 10+ | $1.12 | $1.12 |
| 25+ | $1.03 | $1.03 |
| 100+ | $0.96 | $0.96 |
| 250+ | $0.91 | $0.91 |
| 500+ | $0.88 | $0.88 |
| 1,000+ | $0.88 | $0.88 |
| 2,500+ | $0.83 | $0.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum voltage rating is 50 V.
The package is horizontal, 4 PC pad surface mount.
-40°C to 150°C.
Yes, it is RoHS3 compliant.
11 µH at 100 kHz.
600 Ω.
250 mA maximum.
