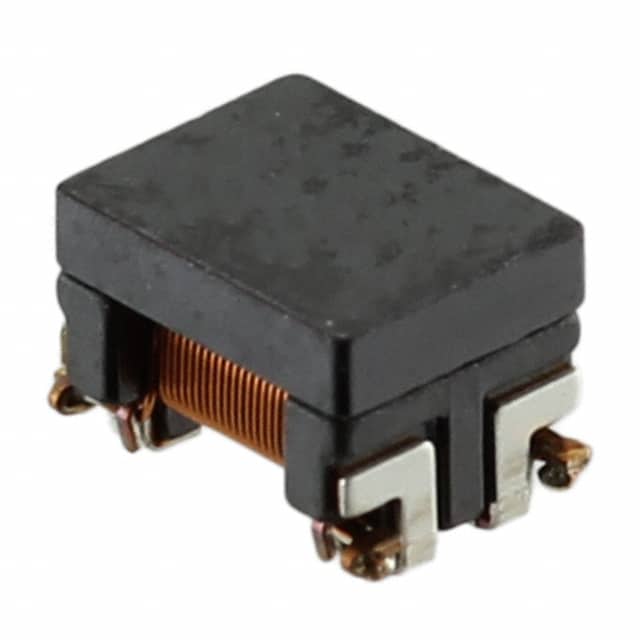

ACT1210-101-2P-TL00 Common mode choke with 100 µH inductance at 100 kHz, 150 mA max current, and 5.1 kΩ impedance at 10 MHz. Surface mount package with 4 PC pad, AEC-Q200 rated.
Mfr Part #:

ACT1210-101-2P-TL00

Available from 2 distributors
Mfr Name: TDK Corporation
TDK Corporation
Common mode choke with 100 µH inductance at 100 kHz, 150 mA max current, and 5.1 kΩ impedance at 10 MHz. Surface mount package with 4 PC pad, AEC-Q200 rated.
✓ Total Stock: 3,598 pcs
$ Price Range: $0.77 - $1.61

ACT1210-101-2P-TL00 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
2,706 pcs
On Request
2706 pcs On Request 1 On Request On Request 1526+ On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
892 pcs
On Request
892 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ACT1210-101-2P-TL00 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Filter Type
Height (Max)
Impedance @ Frequency
Inductance @ Frequency
Mounting Type
Number of Lines
Operating Temperature
Ratings
Voltage Rating
View Similar Products (0)

ACT1210-101-2P-TL00 Description

Short technical summary and product information.

This is a common mode choke designed for signal line filtering. It features an inductance of 100 µH at 100 kHz and an impedance of 5.1 kΩ at 10 MHz.



The component is rated for a maximum current of 150 mA and has a DC resistance of 1.5 Ω. It is rated for 80 V and operates over a temperature range of -55°C to 150°C.



The choke is surface mountable in a horizontal, 4 PC pad package measuring 3.90 mm x 2.50 mm with a maximum height of 2.50 mm. It is AEC-Q200 qualified for automotive applications.

ACT1210-101-2P-TL00 Quick Information

Product Type: Common Mode Choke
Series: ACT1210
Canonical Name: TDK ACT1210-101-2P-TL00 Common Mode Choke
Subcategory: Signal Line Common Mode Choke

ACT1210-101-2P-TL00 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ACT1210-101-2P-TL00 Estimated Pricing

Qty Low High
1+ $1.61 $1.61
10+ $1.32 $1.32
25+ $1.22 $1.22
50+ $1.15 $1.15
100+ $1.09 $1.09
250+ $1.01 $1.01
500+ $0.95 $0.95
1,000+ $0.94 $0.94
6,000+ $0.77 $0.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

ACT1210-101-2P-TL00 Features

  • 100 µH inductance at 100 kHz.
  • 5.1 kΩ impedance at 10 MHz.
  • 150 mA maximum current rating.
  • AEC-Q200 qualified for automotive.
  • Surface mount horizontal 4 PC pad package.

ACT1210-101-2P-TL00 Applications

  • Ideal for signal line common mode filtering.
  • Suitable for automotive electronic modules.
  • Used in noise suppression circuits.
  • Applicable in DC power line filtering.

ACT1210-101-2P-TL00 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the ACT1210-101-2P-TL00?

100 µH at 100 kHz.

What is the impedance at 10 MHz?

5.1 kΩ.

What is the maximum current rating?

150 mA.

What is the DC resistance?

1.5 Ω maximum.

What is the operating temperature range?

-55°C to 150°C.

Is this component AEC-Q200 qualified?

Yes, it is rated AEC-Q200.

What is the package style?

Horizontal, 4 PC pad surface mount.
