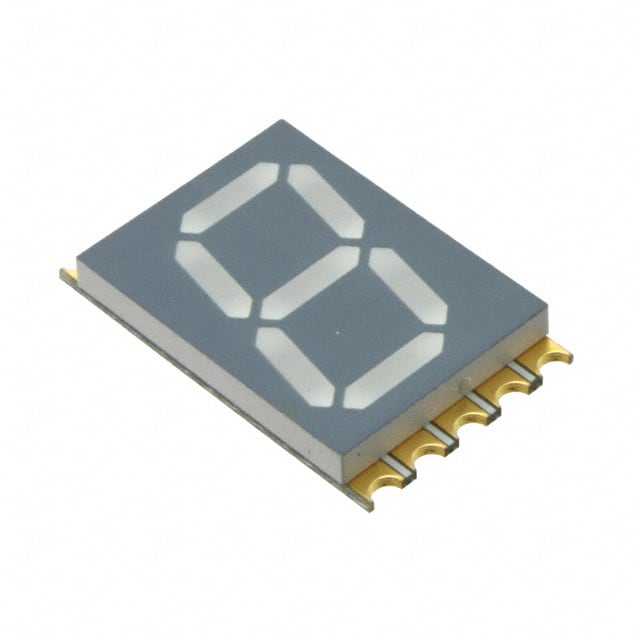

ACSA56-51SURKWA The Kingbright ACSA56-51SURKWA is a single-digit, 0.56-inch red 7-segment LED display module. It features a common anode configuration and is designed for surface mount applications.
Mfr Part #:

ACSA56-51SURKWA

Available from 1 distributors
Mfr Name: Kingbright
Kingbright
The Kingbright ACSA56-51SURKWA is a single-digit, 0.56-inch red 7-segment LED display module. It features a common anode configuration and is designed for surface mount applications.
✓ Total Stock: 50 pcs
$ Price Range: $0.99

ACSA56-51SURKWA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ACSA56-51SURKWA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Color
Common Pin
Current
Digit
Display Type
Forward Voltage
Millicandela Rating
Number of Characters
Operating Temperature
Peak Forward Current
Power Dissipation
Power Dissipation (Max)
Reverse Current
Reverse Voltage
Tape & Reel
Voltage
Wavelength
View Similar Products (0)

ACSA56-51SURKWA Description

Short technical summary and product information.

The Kingbright ACSA56-51SURKWA is a high-performance LED display module featuring a 0.56-inch digit height. This single-character, 7-segment display emits a bright red light, making it suitable for various indicator applications. It utilizes an AlGaInP on GaAs substrate for its Hyper Red source color.



The module is designed for surface mount (SMD) applications with a 12-SMD, No Lead package. It operates with a typical forward voltage of 1.95V and a forward current of 20mA, with a maximum power dissipation of 75mW. The display has a common anode configuration and offers excellent character appearance with a gray face and white segments.



Key electrical characteristics include a peak wavelength of 645nm and a dominant wavelength of 630nm. The spectral line half-width is 28nm. The operating temperature range is from -40°C to +85°C, ensuring reliability in various environmental conditions. The display is supplied on a reel, with a standard package quantity of 400 pieces.

ACSA56-51SURKWA Quick Information

Product Type: LED Display Module
Canonical Name: Kingbright ACSA56-51SURKWA 0.56 inch Red 7-Segment Common Anode LED Display Module
Subcategory: 7-Segment Display

ACSA56-51SURKWA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ACSA56-51SURKWA Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

ACSA56-51SURKWA Features

  • 0.56 inch digit height for clear visibility.
  • Bright red illumination color.
  • Common anode configuration.
  • Surface mount 12-SMD, No Lead package.
  • Wide operating temperature range.

ACSA56-51SURKWA Applications

  • Ideal for digital readouts.
  • Suitable for status indicators.
  • Used in control panels.
  • Applicable in measurement devices.

ACSA56-51SURKWA FAQs

6 frequently asked questions generated from this part’s specifications.
What is the digit height of the ACSA56-51SURKWA display?

The digit height is 0.56 inches.

What color is the ACSA56-51SURKWA LED display?

The display is red.

What is the typical forward voltage for the ACSA56-51SURKWA?

The typical forward voltage is 1.95V.

What is the maximum power dissipation for this LED display?

The maximum power dissipation is 75mW.

What is the operating temperature range for the ACSA56-51SURKWA?

The operating temperature range is -40°C to +85°C.

How is the ACSA56-51SURKWA packaged?

It is supplied on a reel in a 12-SMD, No Lead package with a standard quantity of 400 pieces.
