| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,764 pcs
|
2764 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Current | |
| For Measuring | |
| Frequency | |
| Linearity | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output | |
| Polarization | |
| Response Time | |
| Sensitivity | |
| Sensor Type | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |

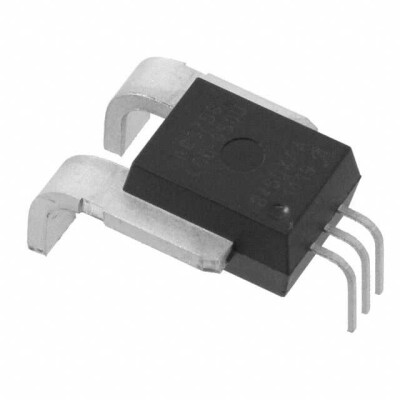

This Hall effect current sensor from Allegro Microsystems, part number ACS759LCB-050B-PFF-T, is designed for accurate AC and DC current measurements up to 50A. It operates with a supply voltage range of 3V to 3.6V and provides a ratiometric voltage output.
The sensor features bidirectional current sensing with a linearity of ±1% and an accuracy of ±3.5%. Its fast response time of 4µs and a frequency response up to 120kHz make it suitable for various applications. The sensitivity is rated at 26.4mV/A.
Packaged in a 5-CB module with formed leads and PFF termination, this sensor is designed for through-hole mounting. It operates within a wide temperature range of -40°C to 150°C.
The ACS759LCB-050B-PFF-T is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This sensor can measure up to 50A AC/DC.
It is a Hall effect, open loop current sensor.
The operating voltage range is 3V to 3.6V.
The accuracy is ±3.5%.
The operating temperature range is -40°C to 150°C.
This sensor is designed for through-hole mounting.
